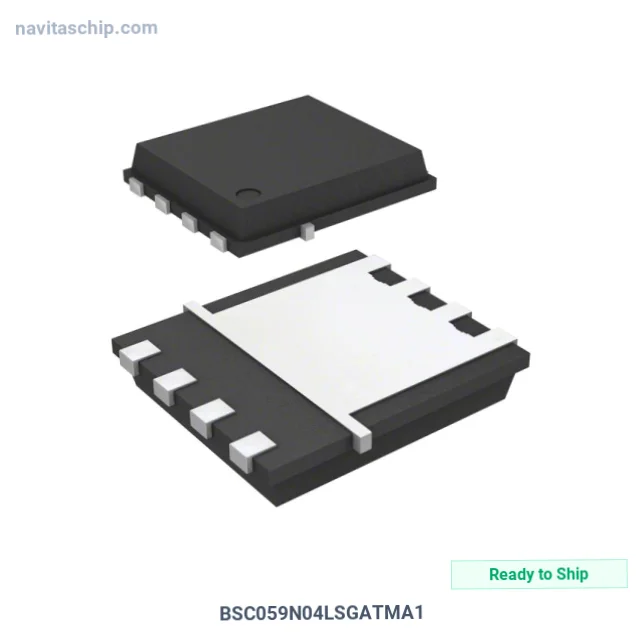

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | BSC059N04LSGATMA1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-2080629 |
| Description | MOSFET N-CH 40V 16A/73A TDSON |
| Spec | 8-PowerTDFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta), 73A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5.9mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 23µA |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3200 pF @ 20 V |
| Power Dissipation (Max) | 2.5W (Ta), 50W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TDSON-8-5 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies BSC059N04LSGATMA1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The BSC059N04LSGATMA1 is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET N-Channel 40V Breakdown 16a Current/73a Current Tdson, housed in a compact PG-TDSON-8-5 package.
Don't let MOSFET allocation constraints slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting: Surface Mount
- Package: 8-PowerTDFN
- Device Package: PG-TDSON-8-5
- RoHS Compliant
Applications
Perfect for:
- battery management
- LED drivers
- switching power supplies
- industrial equipment
- signal processing
Why Choose NavitasChip for BSC059N04LSGATMA1?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the BSC059N04LSGATMA1 and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of BSC059N04LSGATMA1 for the Germany and Japan markets.
BSC059N04LSGATMA1 - Get instant quote online.
