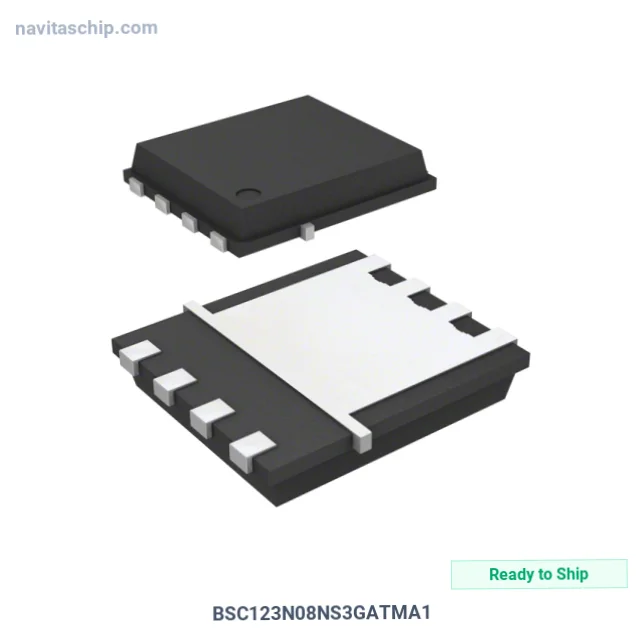

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | BSC123N08NS3GATMA1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-2080643 |
| Description | MOSFET N-CH 80V 11A/55A TDSON |
| Spec | 8-PowerTDFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 55A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 12.3mOhm @ 33A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 33µA |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1870 pF @ 40 V |
| Power Dissipation (Max) | 2.5W (Ta), 66W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TDSON-8-1 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies BSC123N08NS3GATMA1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The BSC123N08NS3GATMA1 is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET N-Channel 80V Breakdown 11a Current/55a Current Tdson, housed in a compact PG-TDSON-8-1 package.
Struggling with EOL (End of Life) notices? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting: Surface Mount
- Package: 8-PowerTDFN
- Device Package: PG-TDSON-8-1
- RoHS Compliant
Applications
Widely adopted for:
- power conversion
- motor control
- industrial equipment
- signal processing
