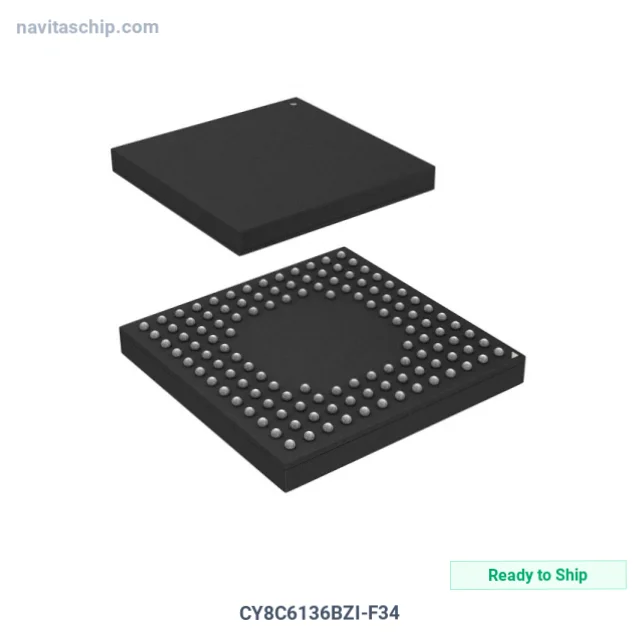

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY8C6136BZI-F34 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-9829902 |
| Description | IC MCU 32BIT 512KB FLASH 124BGA |
| Spec | 124-VFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Speed | 150MHz |
| Connectivity | I2C, LINbus, QSPI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, Cap Sense, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 104 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 8x12b SAR; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 124-VFBGA (9x9) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CY8C6136BZI-F34 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY8C6136BZI-F34 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 32bit 512kb Flash Memory in 124-Pin BGA Package, housed in a compact 124-VFBGA (9x9) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 124-VFBGA
- Device Package: 124-VFBGA (9x9)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
