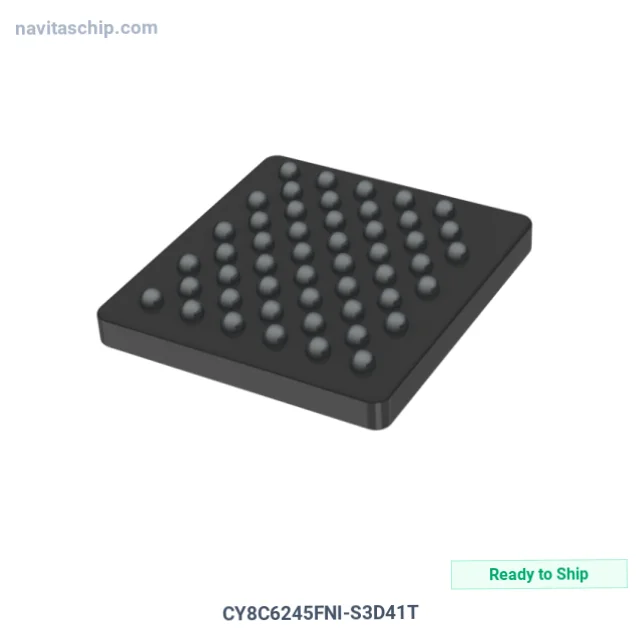

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY8C6245FNI-S3D41T |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-16516828 |
| Description | IC MCU 32BIT 512KB FLASH 49WLCSP |
| Spec | 49-XBGA, WLCSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M0+, ARM® Cortex®-M4F |
| Core Size | 32-Bit Dual-Core |
| Speed | 100MHz, 150MHz |
| Connectivity | FIFO, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SmartCard, SPI, UART/USART |
| Peripherals | Bluetooth, Brown-out Detect/Reset, Cap Sense, DMA, LCD, LVD, POR, PWM, SmartSense, WDT |
| Number of I/O | 37 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 16x12b SAR, 10b Sigma-Delta; D/A 2x7/8b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 49-WLCSP (2.88x3.1) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CY8C6245FNI-S3D41T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY8C6245FNI-S3D41T is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 32bit 512kb Flash Memory in 49-Pin WLCSP Package, housed in a compact 49-WLCSP (2.88x3.1) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 49-XBGA, WLCSP
- Device Package: 49-WLCSP (2.88x3.1)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
