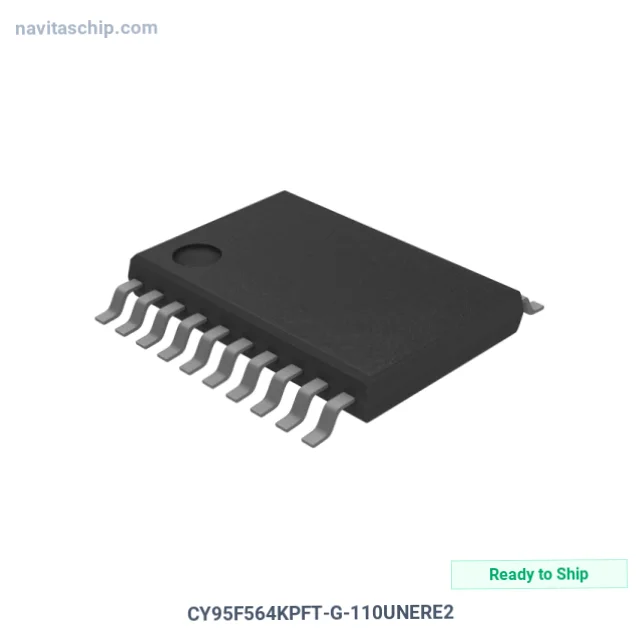

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY95F564KPFT-G-110UNERE2 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-7068488 |
| Description | IC MCU 8BIT 20KB FLASH 20TSSOP |
| Spec | 20-TSSOP (0.173\ |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Bulk |
| Product Status | Active |
| Core Processor | F²MC-8FX |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 20KB (20K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 496 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 6x8/10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CY95F564KPFT-G-110UNERE2 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY95F564KPFT-G-110UNERE2 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 8bit 20kb Flash Memory in 20-Pin TSSOP Package, housed in a compact 20-TSSOP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 20-TSSOP (0.173\
- Device Package: 20-TSSOP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
