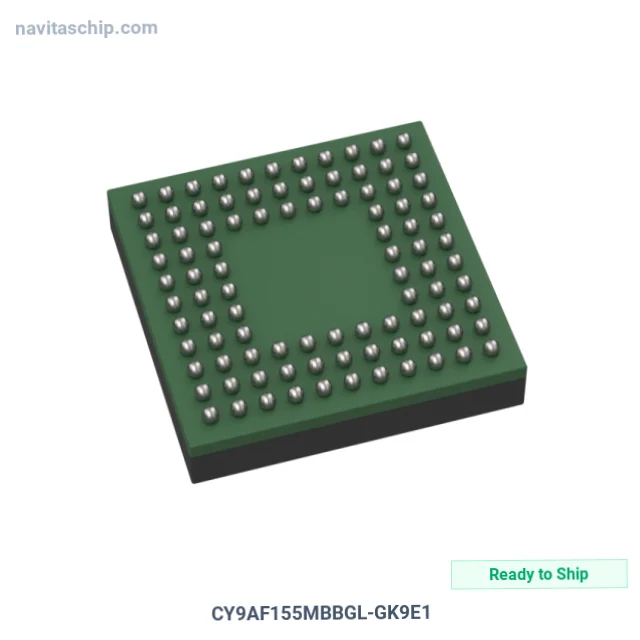

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY9AF155MBBGL-GK9E1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-12089069 |
| Description | IC MCU 32BIT 416KB FLASH 96FBGA |
| Spec | 96-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit |
| Speed | 40MHz |
| Connectivity | CSIO, EBI/EMI, I2C, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 66 |
| Program Memory Size | 416KB (416K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 48K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 17x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 96-FBGA (6x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CY9AF155MBBGL-GK9E1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY9AF155MBBGL-GK9E1 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 32bit 416kb Flash Memory in 96-Pin BGA Package, housed in a compact 96-FBGA (6x6) package.
Struggling with MCU allocation crisis? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 96-LFBGA
- Device Package: 96-FBGA (6x6)
- RoHS Compliant
Applications
Widely adopted for:
- embedded systems
- IoT devices
- smart home
Why Choose NavitasChip for CY9AF155MBBGL-GK9E1?
NavitasChip offers specialized sourcing for end-of-life and obsolete components for the CY9AF155MBBGL-GK9E1 and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of CY9AF155MBBGL-GK9E1 for the Czech Republic and Hungary markets.
CY9AF155MBBGL-GK9E1 - Upload your BOM for fast pricing.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
