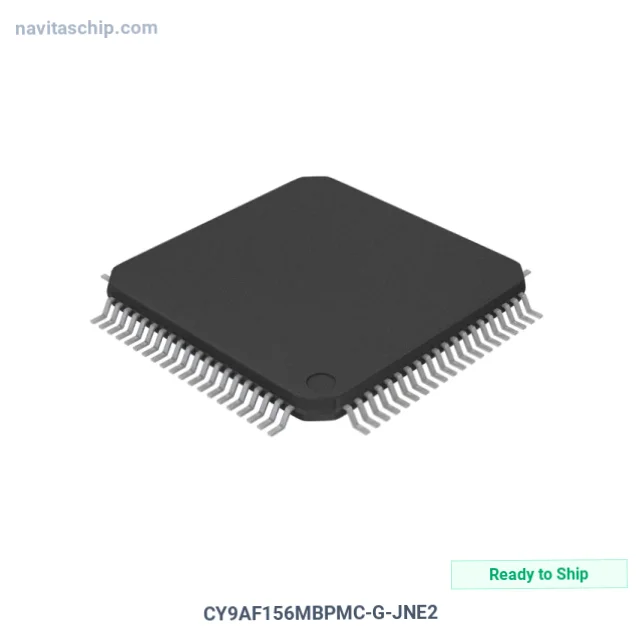

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY9AF156MBPMC-G-JNE2 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-5879891 |
| Description | IC MCU 32BIT 544KB FLASH 80LQFP |
| Spec | 80-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit |
| Speed | 40MHz |
| Connectivity | CSIO, EBI/EMI, I2C, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 66 |
| Program Memory Size | 544KB (544K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 17x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-LQFP (12x12) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CY9AF156MBPMC-G-JNE2 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY9AF156MBPMC-G-JNE2 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 32bit 544kb Flash Memory in 80-Pin LQFP Package, housed in a compact 80-LQFP (12x12) package.
In today's market, production line down can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 80-LQFP
- Device Package: 80-LQFP (12x12)
- RoHS Compliant
Applications
Commonly utilized in:
- embedded systems
- consumer electronics
- professional equipment
- smart home
Why Choose NavitasChip for CY9AF156MBPMC-G-JNE2?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the CY9AF156MBPMC-G-JNE2 and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
CY9AF156MBPMC-G-JNE2 sourced and shipped via our Asia-Pacific distribution network.
CY9AF156MBPMC-G-JNE2 - Inquire for bulk discount.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
