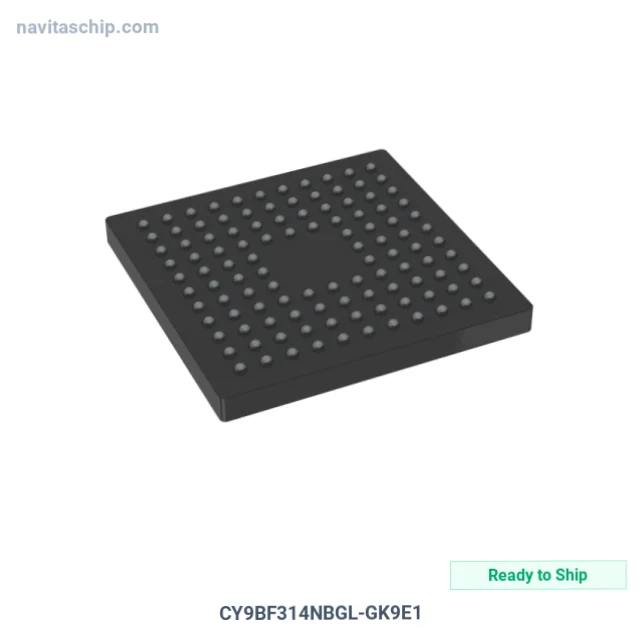

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY9BF314NBGL-GK9E1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-12089081 |
| Description | IC MCU 32BIT 288KB FLASH 112BGA |
| Spec | 112-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit |
| Speed | 144MHz |
| Connectivity | CSIO, EBI/EMI, I2C, LINbus, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 83 |
| Program Memory Size | 288KB (288K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 112-PFBGA (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CY9BF314NBGL-GK9E1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY9BF314NBGL-GK9E1 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 32bit 288kb Flash Memory in 112-Pin BGA Package, housed in a compact 112-PFBGA (10x10) package.
Struggling with quarterly cost-down targets? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 112-LFBGA
- Device Package: 112-PFBGA (10x10)
- RoHS Compliant
Applications
Engineered specifically for:
- consumer electronics
- professional equipment
- wearable devices
- smart home
Why Choose NavitasChip for CY9BF314NBGL-GK9E1?
NavitasChip offers cost-saving procurement for the CY9BF314NBGL-GK9E1 and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Ships from Hong Kong, Singapore, or Shenzhen based on destination requirements.
CY9BF314NBGL-GK9E1 - Request a quote today.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
