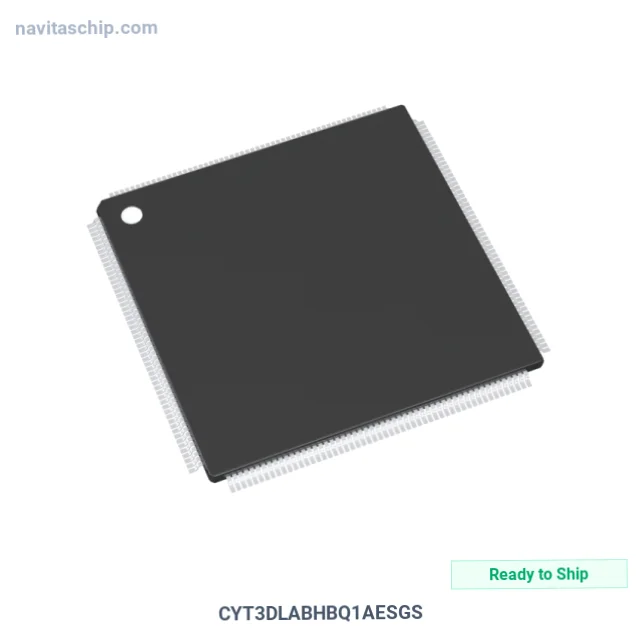

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CYT3DLABHBQ1AESGS |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-16894542 |
| Description | IC MCU 32BT 4.063MB FLSH 216TQFP |
| Spec | 216-LQFP Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M0+, ARM® Cortex®-M7F |
| Core Size | 32-Bit Dual-Core |
| Speed | 240MHz |
| Connectivity | DMA, I2S, LVD, Temp Sensor, WDT |
| Peripherals | DMA, I2S, LVD, WDT |
| Number of I/O | 108 |
| Program Memory Size | 4.063MB (4.063M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 216-TEQFP (24x24) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CYT3DLABHBQ1AESGS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CYT3DLABHBQ1AESGS is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 32bt 4.063mb Flash in 216-Pin TQFP Package, housed in a compact 216-TEQFP (24x24) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 216-LQFP Exposed Pad
- Device Package: 216-TEQFP (24x24)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
