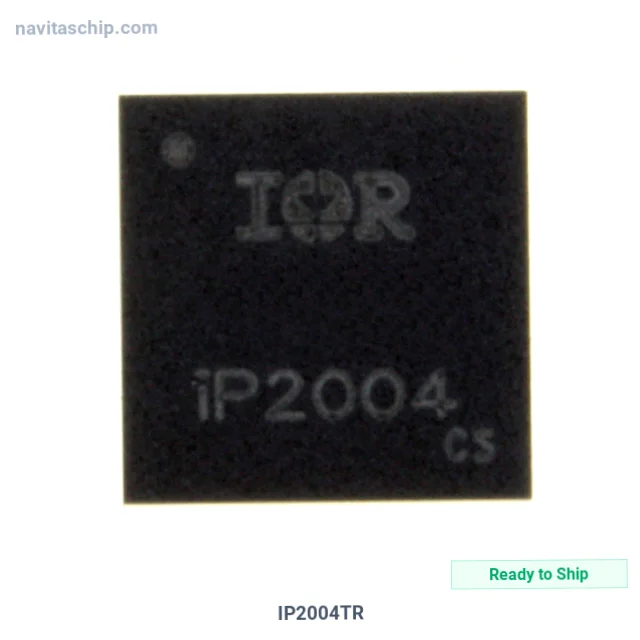

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IP2004TR |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-1925794 |
| Description | IC REG BUCK ADJ 40A LGA |
| Spec | Power Block (LGA) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 8V |
| Current - Output | 40A |
| Frequency - Switching | 250kHz ~ 1.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LGA (7.7x7.7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies IP2004TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IP2004TR is a DC-DC Switching Voltage Regulator manufactured by Infineon Technologies (Infineon). Integrated Circuit Regulator Buck Adjustable 40a Lga, housed in a compact LGA (7.7x7.7) package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: Power Block (LGA)
- Device Package: LGA (7.7x7.7)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
