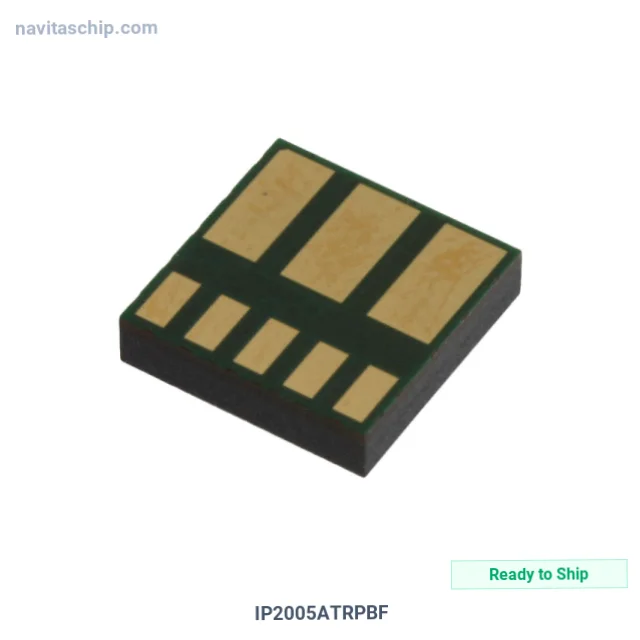

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IP2005ATRPBF |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-1925207 |
| Description | IC REG BUCK ADJ 40A LGA |
| Spec | Power Block (LGA) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6.5V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 40A |
| Frequency - Switching | 250kHz ~ 1.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LGA (7.7x7.7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies IP2005ATRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IP2005ATRPBF is a DC-DC Switching Voltage Regulator manufactured by Infineon Technologies (Infineon). Integrated Circuit Regulator Buck Adjustable 40a Lga, housed in a compact LGA (7.7x7.7) package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: Power Block (LGA)
- Device Package: LGA (7.7x7.7)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
