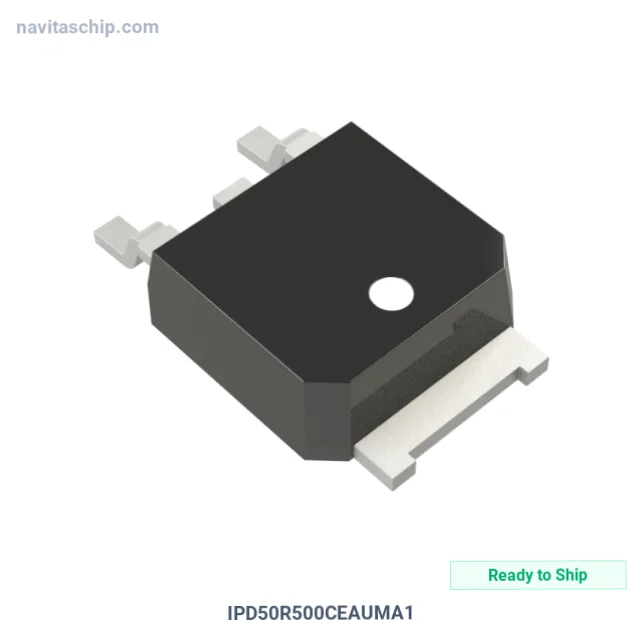

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IPD50R500CEAUMA1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-6599409 |
| Description | MOSFET N-CH 500V 7.6A TO252 |
| Spec | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 7.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 13V |
| Rds On (Max) @ Id, Vgs | 500mOhm @ 2.3A, 13V |
| Vgs(th) (Max) @ Id | 3.5V @ 200µA |
| Gate Charge (Qg) (Max) @ Vgs | 18.7 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 433 pF @ 100 V |
| Power Dissipation (Max) | 57W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TO252-3 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies IPD50R500CEAUMA1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IPD50R500CEAUMA1 is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET N-Channel 500V Breakdown 7.6a Current To252, housed in a compact PG-TO252-3 package.
Struggling with power transistor lead times? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting: Surface Mount
- Package: TO-252-3, DPAK (2 Leads + Tab), SC-63
- Device Package: PG-TO252-3
- RoHS Compliant
Applications
Engineered specifically for:
- battery management
- signal amplification
- power control
- signal processing
Why Choose NavitasChip for IPD50R500CEAUMA1?
NavitasChip offers cost-effective alternative to authorized distributors for the IPD50R500CEAUMA1 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
IPD50R500CEAUMA1 sourced and shipped via our Asia-Pacific distribution network.
IPD50R500CEAUMA1 - Inquire for bulk discount.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
