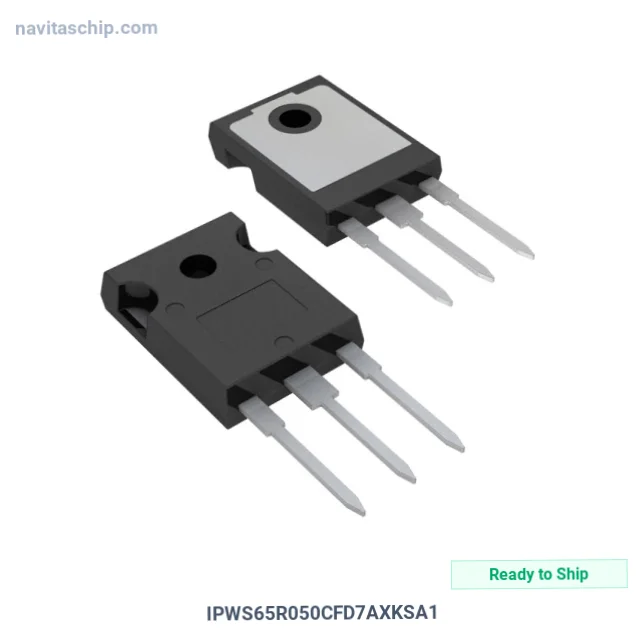

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IPWS65R050CFD7AXKSA1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-13212421 |
| Description | MOSFET N-CH 650V 45A TO247-3-41 |
| Spec | TO-247-3 |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tube |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 45A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 24.8A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 1.24mA |
| Gate Charge (Qg) (Max) @ Vgs | 102 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4975 pF @ 400 V |
| Power Dissipation (Max) | 227W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO247-3-41 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies IPWS65R050CFD7AXKSA1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IPWS65R050CFD7AXKSA1 is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET N-Channel 650V breakdown 45A current TO-247-3-41, housed in a compact PG-TO247-3-41 package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting: Through Hole
- Package: TO-247-3
- Device Package: PG-TO247-3-41
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
