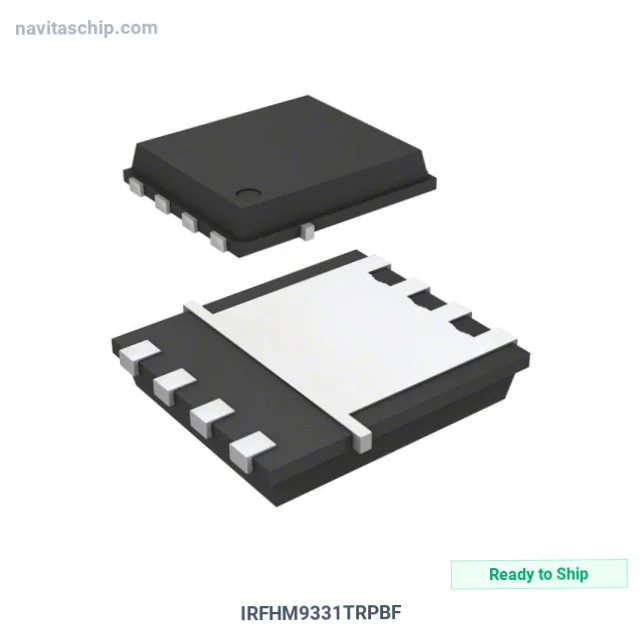

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IRFHM9331TRPBF |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-2355329 |
| Description | MOSFET P-CH 30V 11A/24A PQFN |
| Spec | 8-PowerTDFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Last Time Buy |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 24A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V, 20V |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 11A, 20V |
| Vgs(th) (Max) @ Id | 2.4V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 48 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1543 pF @ 25 V |
| Power Dissipation (Max) | 2.8W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies IRFHM9331TRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IRFHM9331TRPBF is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET P-Channel 30V Breakdown 11a Current/24a Current Pqfn, housed in a compact PQFN (3x3) package. Originally developed by International Rectifier, this component continues to be fully supported. This is the Lead-Free (Pb-Free) version, fully RoHS compliant.
Struggling with minimum order quantity requirements? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting: Surface Mount
- Package: 8-PowerTDFN
- Device Package: PQFN (3x3)
- RoHS Compliant
Applications
Ideal solution for:
- LED drivers
- switching power supplies
- switching
- power control
Why Choose NavitasChip for IRFHM9331TRPBF?
NavitasChip offers competitive market pricing for the IRFHM9331TRPBF and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of IRFHM9331TRPBF for the Hungary and Czech Republic markets.
IRFHM9331TRPBF - Upload your BOM for fast pricing.
