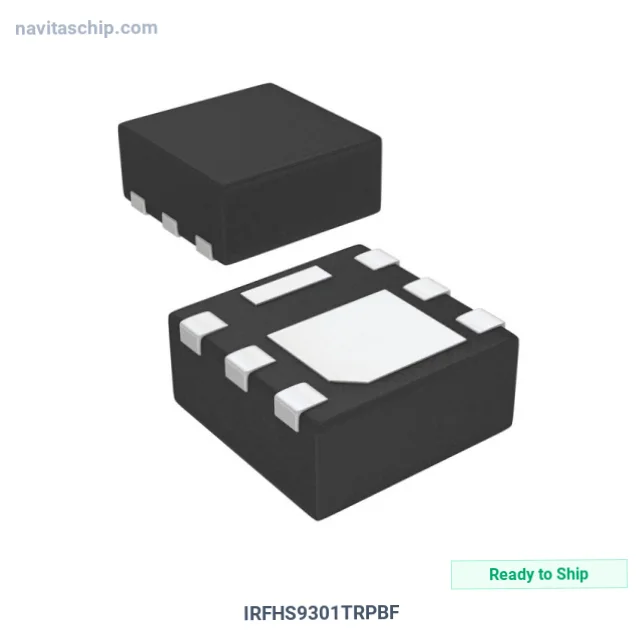

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IRFHS9301TRPBF |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-2523447 |
| Description | MOSFET P-CH 30V 6A/13A 6PQFN |
| Spec | 6-PowerVDFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Last Time Buy |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta), 13A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 37mOhm @ 7.8A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 580 pF @ 25 V |
| Power Dissipation (Max) | 2.1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-PQFN (2x2) (DFN2020) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies IRFHS9301TRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IRFHS9301TRPBF is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET P-Channel 30V breakdown 6A current/13A current 6PQFN, housed in a compact 6-PQFN (2x2) (DFN2020) package. Originally developed by International Rectifier.
Key Technical Specifications
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting: Surface Mount
- Package: 6-PowerVDFN
- Device Package: 6-PQFN (2x2) (DFN2020)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
