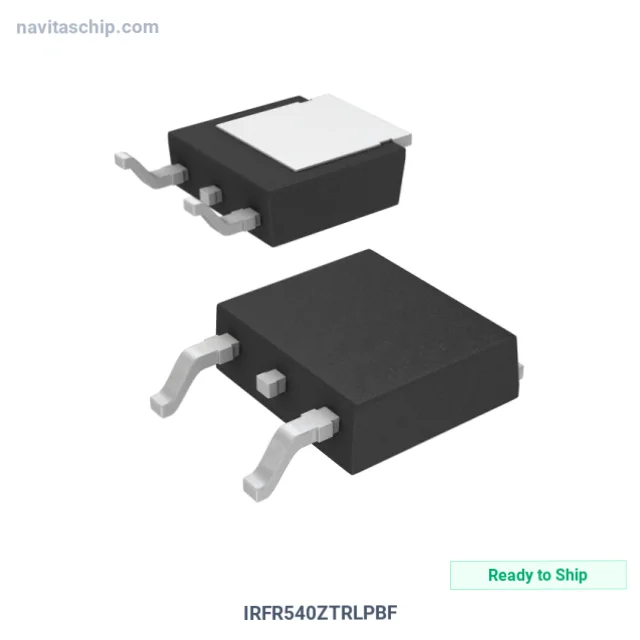

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IRFR540ZTRLPBF |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-1828336 |
| Description | MOSFET N-CH 100V 35A DPAK |
| Spec | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 28.5mOhm @ 21A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 59 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1690 pF @ 25 V |
| Power Dissipation (Max) | 91W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252AA (DPAK) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies IRFR540ZTRLPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IRFR540ZTRLPBF is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET N-Channel 100V Breakdown 35a Current DPAK, housed in a compact TO-252AA (DPAK) package. Originally developed by International Rectifier, this component continues to be fully supported. This is the Lead-Free (Pb-Free) version, fully RoHS compliant.
Struggling with annual BOM cost reduction pressure? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Surface Mount
- Package: TO-252-3, DPAK (2 Leads + Tab), SC-63
- Device Package: TO-252AA (DPAK)
- RoHS Compliant
Applications
Widely adopted for:
- LED drivers
- switching power supplies
- switching
- power control
Why Choose NavitasChip for IRFR540ZTRLPBF?
NavitasChip offers cost-saving procurement for the IRFR540ZTRLPBF and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for IRFR540ZTRLPBF, serving customers in UAE, Qatar, and worldwide.
IRFR540ZTRLPBF - Check our competitive price now.
