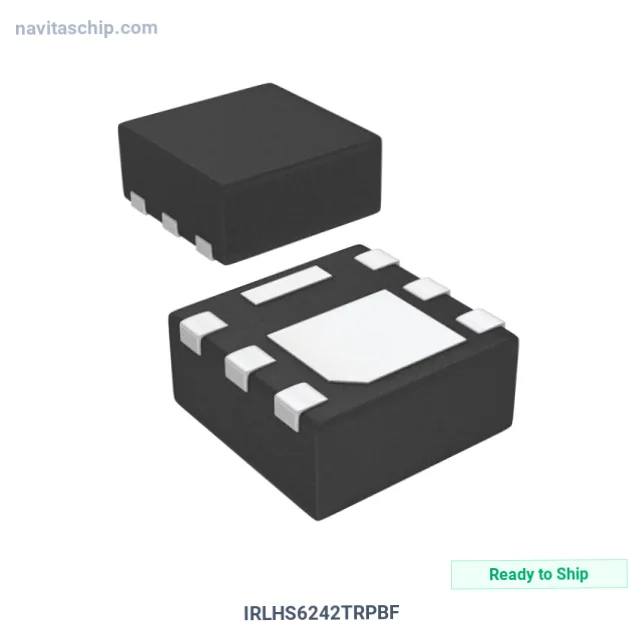

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IRLHS6242TRPBF |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-2605740 |
| Description | MOSFET N-CH 20V 10A/12A 6PQFN |
| Spec | 6-PowerVDFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 12A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 11.7mOhm @ 8.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 10µA |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1110 pF @ 10 V |
| Power Dissipation (Max) | 1.98W (Ta), 9.6W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-PQFN (2x2) (DFN2020) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies IRLHS6242TRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IRLHS6242TRPBF is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET N-Channel 20V Breakdown 10a Current/12a Current 6pqfn, housed in a compact 6-PQFN (2x2) (DFN2020) package. This is the Lead-Free (Pb-Free) version, fully RoHS compliant.
Don't let power transistor lead times slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting: Surface Mount
- Package: 6-PowerVDFN
- Device Package: 6-PQFN (2x2) (DFN2020)
- RoHS Compliant
Applications
Critical part of:
- power conversion
- industrial equipment
- signal amplification
- power control
Why Choose NavitasChip for IRLHS6242TRPBF?
NavitasChip offers Allocated parts in stock when authorized channels face shortage for the IRLHS6242TRPBF and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Trusted by procurement managers in Qatar, Turkey, and across the globe.
IRLHS6242TRPBF - Check our competitive price now.
