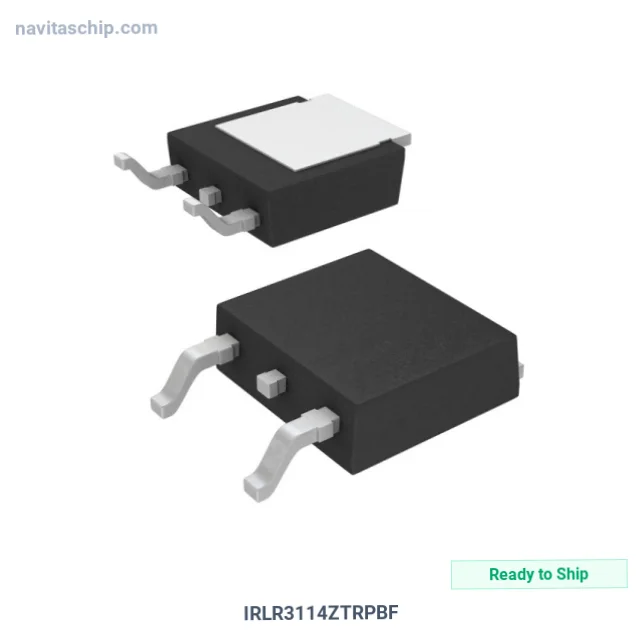

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IRLR3114ZTRPBF |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-1925371 |
| Description | MOSFET N-CH 40V 42A DPAK |
| Spec | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 42A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.9mOhm @ 42A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 4.5 V |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 3810 pF @ 25 V |
| Power Dissipation (Max) | 140W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252AA (DPAK) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies IRLR3114ZTRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IRLR3114ZTRPBF is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET N-Channel 40V Breakdown 42a Current DPAK, housed in a compact TO-252AA (DPAK) package. This is the Lead-Free (Pb-Free) version, fully RoHS compliant.
Don't let minimum order quantity requirements slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Surface Mount
- Package: TO-252-3, DPAK (2 Leads + Tab), SC-63
- Device Package: TO-252AA (DPAK)
- RoHS Compliant
Applications
Ideal solution for:
- battery management
- switching power supplies
- industrial equipment
- signal amplification
- power control
