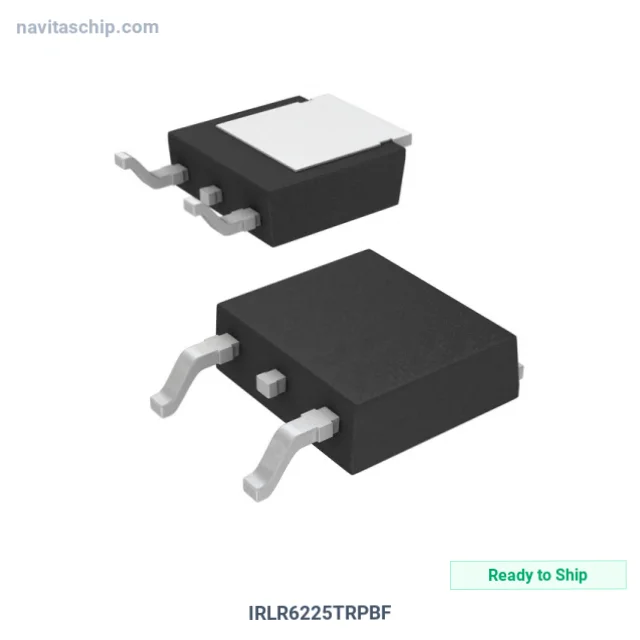

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IRLR6225TRPBF |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-2538151 |
| Description | MOSFET N-CH 20V 100A DPAK |
| Spec | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Last Time Buy |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 4mOhm @ 21A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 72 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 3770 pF @ 10 V |
| Power Dissipation (Max) | 63W (Tc) |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252AA (DPAK) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies IRLR6225TRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IRLR6225TRPBF is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET N-Channel 20V breakdown 100A current DPAK, housed in a compact TO-252AA (DPAK) package.
Key Technical Specifications
- Operating Temperature: -50°C ~ 150°C (TJ)
- Mounting: Surface Mount
- Package: TO-252-3, DPAK (2 Leads + Tab), SC-63
- Device Package: TO-252AA (DPAK)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
