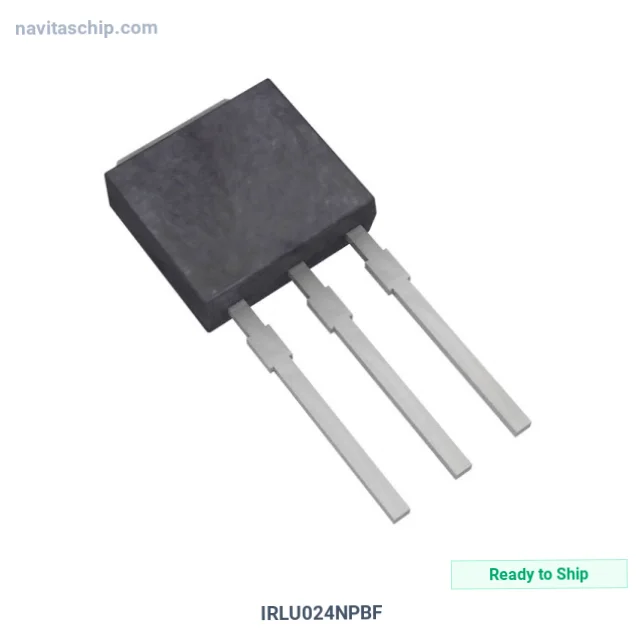

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IRLU024NPBF |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-812400 |
| Description | MOSFET N-CH 55V 17A IPAK |
| Spec | TO-251-3 Short Leads, IPAK, TO-251AA |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Package | Tube |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 5 V |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 480 pF @ 25 V |
| Power Dissipation (Max) | 45W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | IPAK (TO-251AA) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies IRLU024NPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IRLU024NPBF is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET N-Channel 55V Breakdown 17a Current Ipak, housed in a compact IPAK (TO-251AA) package. This is the Lead-Free (Pb-Free) version, fully RoHS compliant.
Don't let power transistor lead times slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Through Hole
- Package: TO-251-3 Short Leads, IPAK, TO-251AA
- Device Package: IPAK (TO-251AA)
- RoHS Compliant
Applications
Ideal solution for:
- battery management
- LED drivers
- switching power supplies
- power control
- signal processing
Why Choose NavitasChip for IRLU024NPBF?
NavitasChip offers global surplus sourcing network for the IRLU024NPBF and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
IRLU024NPBF sourced and shipped via our Asia-Pacific distribution network.
IRLU024NPBF - Request a quote today.
