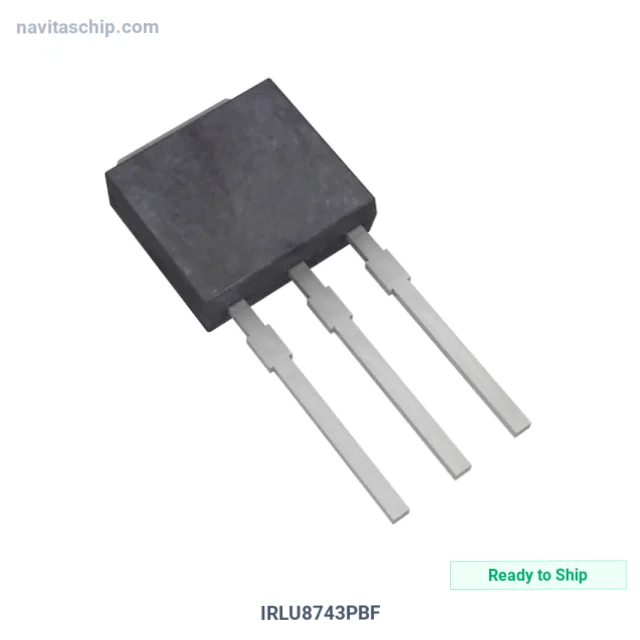

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IRLU8743PBF |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-1894174 |
| Description | MOSFET N-CH 30V 160A IPAK |
| Spec | TO-251-3 Short Leads, IPAK, TO-251AA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Package | Bulk |
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 160A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.1mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 59 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4880 pF @ 15 V |
| Power Dissipation (Max) | 135W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | IPAK (TO-251AA) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies IRLU8743PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IRLU8743PBF is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET N-Channel 30V breakdown 160A current Ipak, housed in a compact IPAK (TO-251AA) package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Through Hole
- Package: TO-251-3 Short Leads, IPAK, TO-251AA
- Device Package: IPAK (TO-251AA)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
