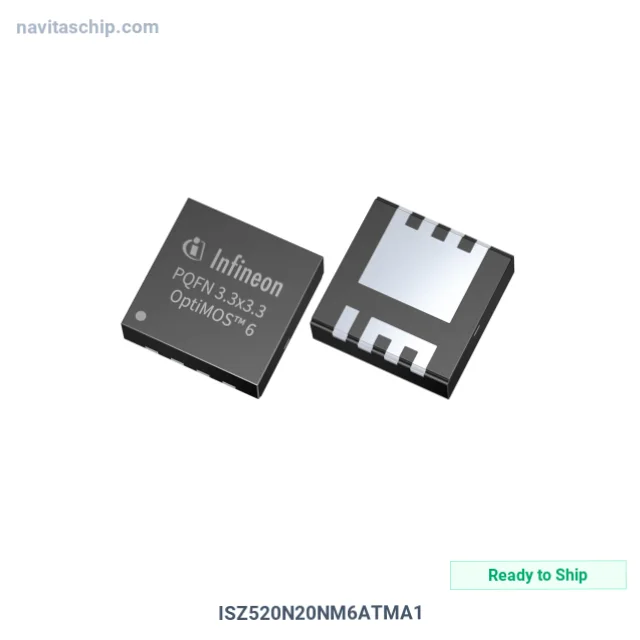

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ISZ520N20NM6ATMA1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-20841882 |
| Description | TRENCH >=100V |
| Spec | 8-PowerVDFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta), 26A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V, 15V |
| Rds On (Max) @ Id, Vgs | 47.8mOhm @ 15A, 15V |
| Vgs(th) (Max) @ Id | 4.5V @ 31µA |
| Gate Charge (Qg) (Max) @ Vgs | 14.9 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 960 pF @ 100 V |
| Power Dissipation (Max) | 2.5W (Ta), 88W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TSDSON-8-34 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies ISZ520N20NM6ATMA1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ISZ520N20NM6ATMA1 is a Transistor manufactured by Infineon Technologies (Infineon). Trench >=100V breakdown, housed in a compact PG-TSDSON-8-34 package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Surface Mount
- Package: 8-PowerVDFN
- Device Package: PG-TSDSON-8-34
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
