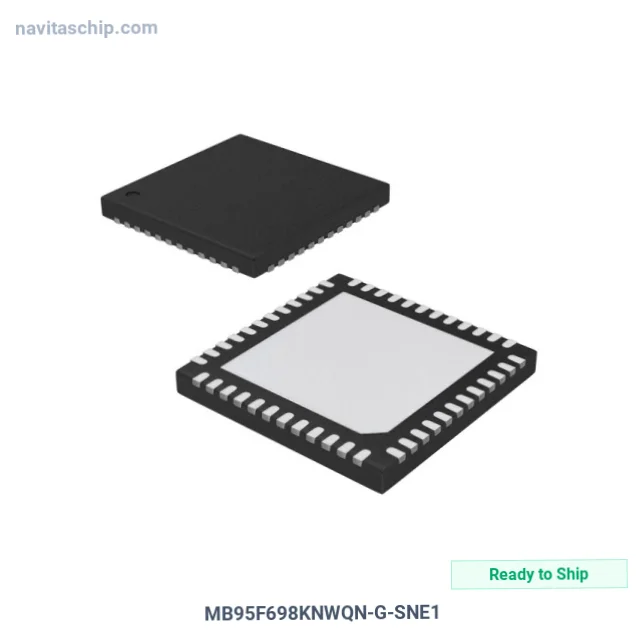

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MB95F698KNWQN-G-SNE1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-9557698 |
| Description | IC MCU 8BIT 60KB FLASH 48QFN |
| Spec | 48-WFQFN Exposed Pad |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Bulk |
| Product Status | Obsolete |
| Core Processor | F²MC-8FX |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, LINbus, SIO, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 45 |
| Program Memory Size | 60KB (60K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.88V ~ 5.5V |
| Data Converters | A/D 12x8/10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-QFN (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies MB95F698KNWQN-G-SNE1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MB95F698KNWQN-G-SNE1 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 8bit 60kb Flash Memory in 48-Pin QFN Package, housed in a compact 48-QFN (7x7) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 48-WFQFN Exposed Pad
- Device Package: 48-QFN (7x7)
- RoHS Compliant
