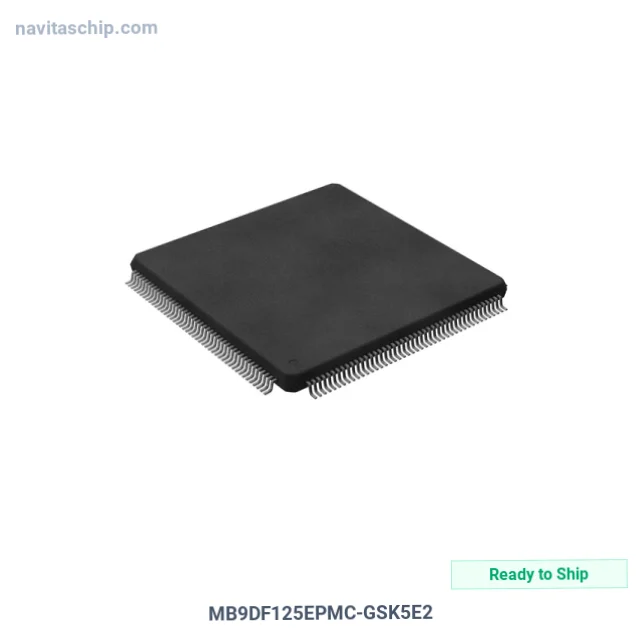

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MB9DF125EPMC-GSK5E2 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-5787497 |
| Description | IC MCU 32BIT 1MB FLASH 176LQFP |
| Spec | 176-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | ARM® Cortex®-R4 |
| Core Size | 32-Bit |
| Speed | 128MHz |
| Connectivity | CANbus, EBI/EMI, I2C, LINbus, SPI, UART/USART |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 141 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.1V ~ 5.5V |
| Data Converters | A/D 50x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies MB9DF125EPMC-GSK5E2 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MB9DF125EPMC-GSK5E2 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 32bit 1mb Flash Memory in 176-Pin LQFP Package, housed in a compact 176-LQFP (24x24) package.
Don't let minimum order quantity requirements slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 176-LQFP
- Device Package: 176-LQFP (24x24)
- RoHS Compliant
Applications
Critical part of:
- consumer electronics
- professional equipment
- industrial control
Why Choose NavitasChip for MB9DF125EPMC-GSK5E2?
NavitasChip offers cost-saving procurement for the MB9DF125EPMC-GSK5E2 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Multiple origin options for MB9DF125EPMC-GSK5E2 to optimize delivery time and customs clearance.
MB9DF125EPMC-GSK5E2 - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
