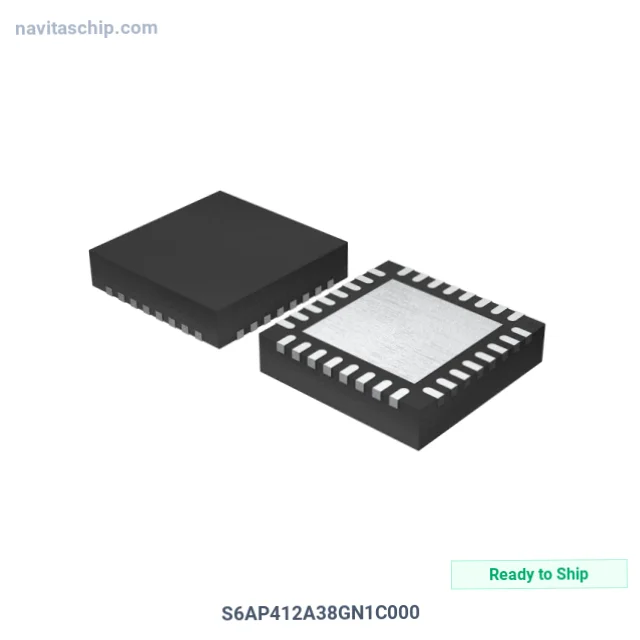

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S6AP412A38GN1C000 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-6565136 |
| Description | IC REG BUCK BST 0.9V TRPL 32QFN |
| Spec | 32-WFQFN Exposed Pad |
| Package | Cut Tape (CT) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Infineon Technologies |
| Package | Cut Tape (CT) |
| Product Status | Obsolete |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Buck-Boost |
| Output Type | Fixed |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.9V, 1.8V, 3.3V |
| Current - Output | 4A, 1.2A, 600mA |
| Frequency - Switching | 3MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies S6AP412A38GN1C000 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The S6AP412A38GN1C000 is a DC-DC Switching Voltage Regulator manufactured by Infineon Technologies (Infineon). Integrated Circuit Regulator Buck Bst 0.9V Supply Trpl in 32-Pin QFN Package, housed in a compact 32-QFN (5x5) package.
Key Technical Specifications
- Output Type: Fixed
- Operating Temperature: -30°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 32-WFQFN Exposed Pad
- Device Package: 32-QFN (5x5)
- RoHS Compliant
Packaging: factory Cut Tape (CT) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
