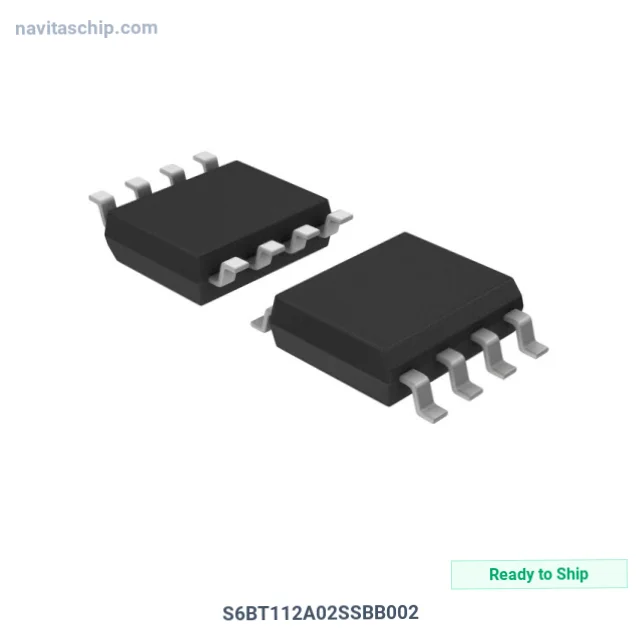

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S6BT112A02SSBB002 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-10496613 |
| Description | IC TRANSCEIVER 1/1 8SOIC |
| Spec | 8-SOIC (0.154", 3.90mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Transceiver |
| Protocol | CXPI |
| Number of Drivers/Receivers | 1/1 |
| Receiver Hysteresis | 500 mV |
| Data Rate | 20kbps |
| Voltage - Supply | 5.3V ~ 18V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies S6BT112A02SSBB002 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The S6BT112A02SSBB002 is an Interface Driver Receiver Transceiver IC manufactured by Infineon Technologies (Infineon). Integrated Circuit Transceiver 1/1 in 8-Pin SOIC Package, housed in a compact 8-SOIC package, with 5.3V ~ 18V supply voltage.
Key Technical Specifications
- Supply Voltage: 5.3V ~ 18V
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width)
- Device Package: 8-SOIC
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
