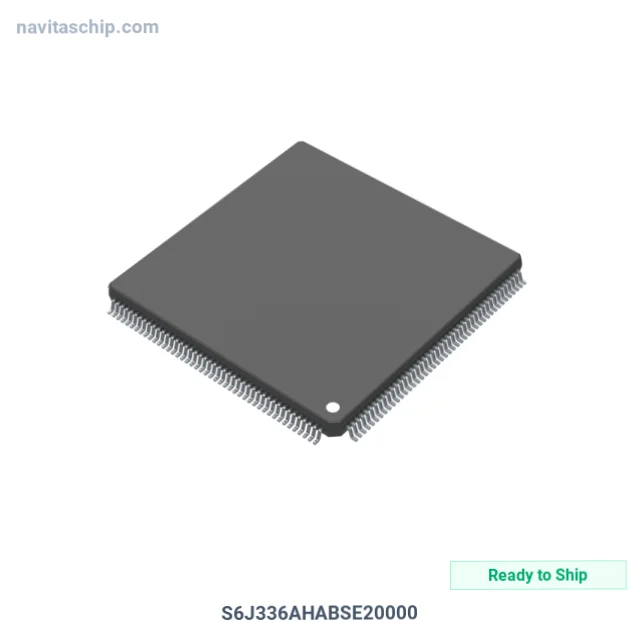

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S6J336AHABSE20000 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-18699972 |
| Description | TRAVEO-40NM |
| Spec | 176-LQFP Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-R5F |
| Core Size | 32-Bit |
| Speed | 132MHz |
| Connectivity | CANbus, CSIO, I2C, LINbus, UART/USART |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 94 |
| Program Memory Size | 112KB (112K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 40x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-TEQFP (20x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies S6J336AHABSE20000 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The S6J336AHABSE20000 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Traveo-40nm, housed in a compact 144-TEQFP (20x20) package.
Facing MCU allocation crisis? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 176-LQFP Exposed Pad
- Device Package: 144-TEQFP (20x20)
- RoHS Compliant
Applications
Designed for:
- industrial automation
- wearable devices
- smart home
Why Choose NavitasChip for S6J336AHABSE20000?
NavitasChip offers cost-saving procurement for the S6J336AHABSE20000 and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for S6J336AHABSE20000 with regional warehouse support.
S6J336AHABSE20000 - Inquire for bulk discount.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
