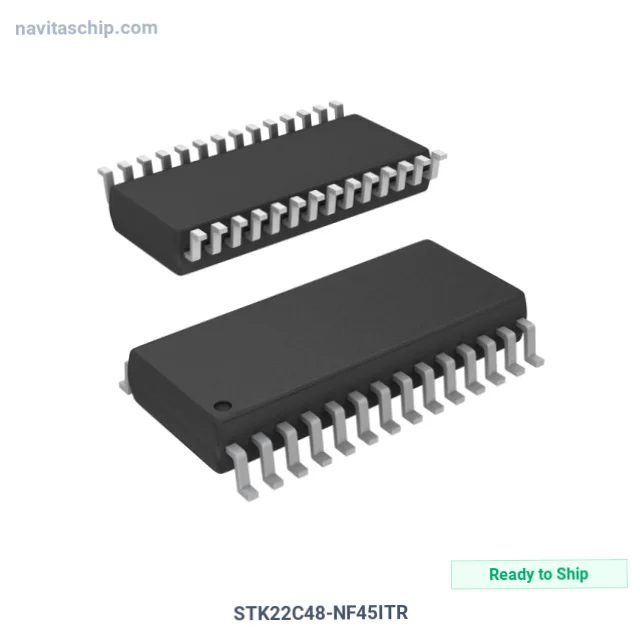

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | STK22C48-NF45ITR |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-1999764 |
| Description | IC NVSRAM 16KBIT PARALLEL 28SOIC |
| Spec | 28-SOIC (0.295", 7.50mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Memory Type | Non-Volatile |
| Memory Format | NVSRAM |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Size | 16Kbit |
| Memory Organization | 2K x 8 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 45ns |
| Access Time | 45 ns |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies STK22C48-NF45ITR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The STK22C48-NF45ITR is a Memory IC manufactured by Infineon Technologies (Infineon). Integrated Circuit Nvsram 16kbit Parallel in 28-Pin SOIC Package, housed in a compact 28-SOIC package, with 4.5V ~ 5.5V supply voltage. Supplied in Tape and Reel packaging for automated assembly.
Facing minimum order quantity requirements? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 28-SOIC (0.295", 7.50mm Width)
- Device Package: 28-SOIC
Applications
Widely adopted for:
- embedded systems
- IoT devices
- professional equipment
Why Choose NavitasChip for STK22C48-NF45ITR?
NavitasChip offers cost-effective alternative to authorized distributors for the STK22C48-NF45ITR and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
As an independent distributor, we offer STK22C48-NF45ITR with flexible routing options.
STK22C48-NF45ITR - Inquire for bulk discount.
