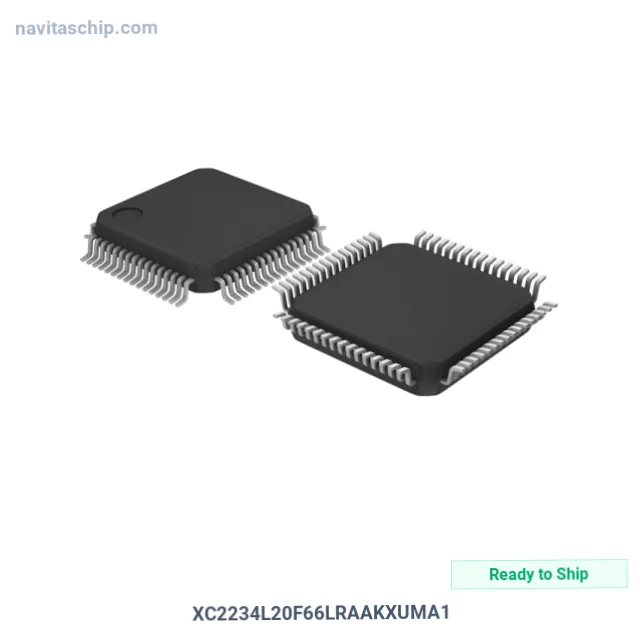

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | XC2234L20F66LRAAKXUMA1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-5960749 |
| Description | IC MCU 16/32B 160KB FLASH 64LQFP |
| Spec | 64-LQFP Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Last Time Buy |
| Core Processor | C166SV2 |
| Core Size | 16/32-Bit |
| Speed | 66MHz |
| Connectivity | CANbus, I2C, LINbus, SPI, SSC, UART/USART, USI |
| Peripherals | I2S, POR, PWM, WDT |
| Number of I/O | 48 |
| Program Memory Size | 160KB (160K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 10K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 19x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-LQFP-64-22 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies XC2234L20F66LRAAKXUMA1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The XC2234L20F66LRAAKXUMA1 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 16/32b 160kb Flash Memory in 64-Pin LQFP Package, housed in a compact PG-LQFP-64-22 package. Originally developed by Xilinx, this component continues to be fully supported.
Don't let production line down slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 64-LQFP Exposed Pad
- Device Package: PG-LQFP-64-22
- RoHS Compliant
Applications
Engineered specifically for:
- embedded systems
- IoT devices
- consumer electronics
- professional equipment
- smart home
Why Choose NavitasChip for XC2234L20F66LRAAKXUMA1?
NavitasChip offers cost-effective alternative to authorized distributors for the XC2234L20F66LRAAKXUMA1 and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Multiple origin options for XC2234L20F66LRAAKXUMA1 to optimize delivery time and customs clearance.
XC2234L20F66LRAAKXUMA1 - Request a quote today.
