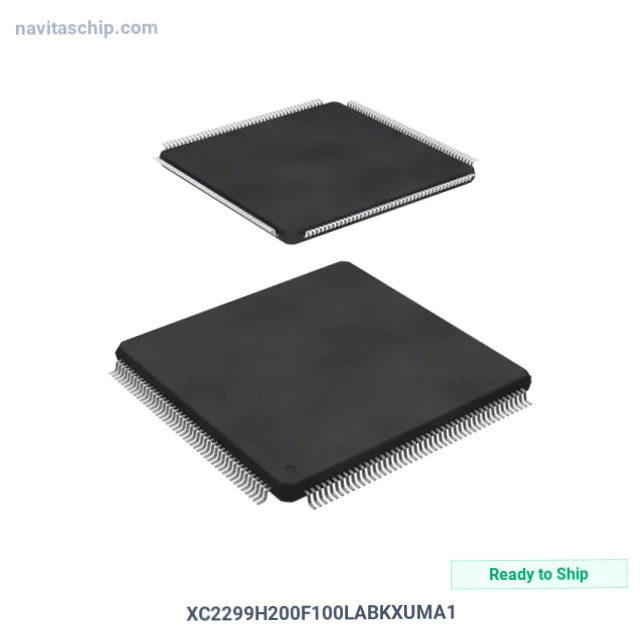

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | XC2299H200F100LABKXUMA1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-2783367 |
| Description | IC MCU 16/32B 1.6MB FLSH 176LQFP |
| Spec | 176-LQFP Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Core Processor | C166SV2 |
| Core Size | 16/32-Bit |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, I2C, LINbus, SPI, SSC, UART/USART, USI |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 150 |
| Program Memory Size | 1.6MB (1.6M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 138K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 30x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-LQFP-176-12 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies XC2299H200F100LABKXUMA1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The XC2299H200F100LABKXUMA1 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 16/32b 1.6mb Flash in 176-Pin LQFP Package, housed in a compact PG-LQFP-176-12 package. Originally developed by Xilinx, this component continues to be fully supported.
Don't let allocation constraints slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 176-LQFP Exposed Pad
- Device Package: PG-LQFP-176-12
- RoHS Compliant
Applications
Widely adopted for:
- IoT devices
- professional equipment
- wearable devices
- industrial control
- smart home
Why Choose NavitasChip for XC2299H200F100LABKXUMA1?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the XC2299H200F100LABKXUMA1 and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for XC2299H200F100LABKXUMA1 with regional warehouse support.
XC2299H200F100LABKXUMA1 - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
