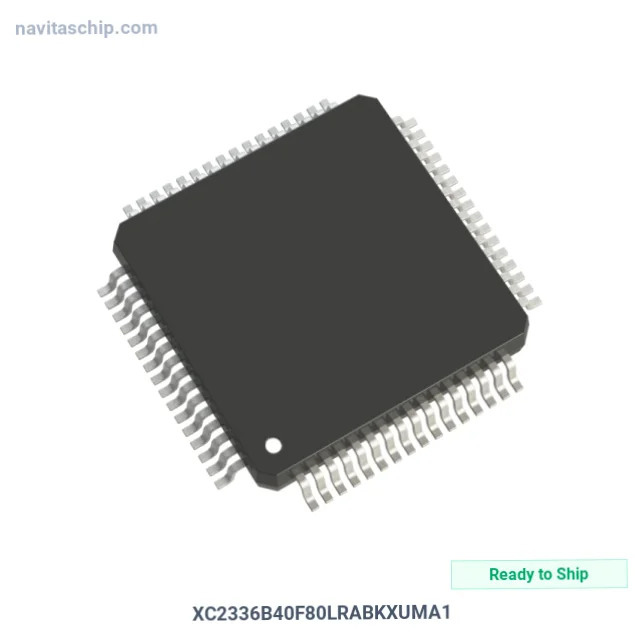

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | XC2336B40F80LRABKXUMA1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-5960757 |
| Description | IC MCU 16/32B 320KB FLASH 64LQFP |
| Spec | 64-LQFP Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Last Time Buy |
| Core Processor | C166SV2 |
| Core Size | 16/32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, I2C, LINbus, SPI, SSC, UART/USART, USI |
| Peripherals | I2S, POR, PWM, WDT |
| Number of I/O | 38 |
| Program Memory Size | 320KB (320K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 34K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 9x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-LQFP-64-6 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies XC2336B40F80LRABKXUMA1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The XC2336B40F80LRABKXUMA1 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 16/32b 320kb Flash Memory in 64-Pin LQFP Package, housed in a compact PG-LQFP-64-6 package. Originally developed by Xilinx, this component continues to be fully supported.
Struggling with legacy FPGA EOL transition without board redesign? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 64-LQFP Exposed Pad
- Device Package: PG-LQFP-64-6
- RoHS Compliant
Applications
Essential component for:
- embedded systems
- professional equipment
- industrial control
Why Choose NavitasChip for XC2336B40F80LRABKXUMA1?
NavitasChip offers cost-effective alternative to authorized distributors for the XC2336B40F80LRABKXUMA1 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
XC2336B40F80LRABKXUMA1 sourced and shipped via our Asia-Pacific distribution network.
XC2336B40F80LRABKXUMA1 - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
