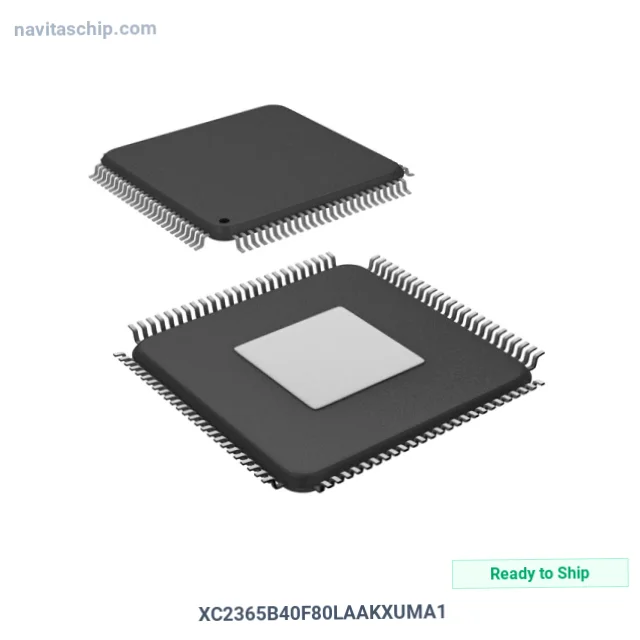

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | XC2365B40F80LAAKXUMA1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-2338246 |
| Description | IC MCU 16/32B 320KB FLSH 100LQFP |
| Spec | 100-LQFP Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Core Processor | C166SV2 |
| Core Size | 16/32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, I2C, LINbus, SPI, SSC, UART/USART, USI |
| Peripherals | I2S, POR, PWM, WDT |
| Number of I/O | 76 |
| Program Memory Size | 320KB (320K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 34K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-LQFP-100-8 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies XC2365B40F80LAAKXUMA1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The XC2365B40F80LAAKXUMA1 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 16/32b 320kb Flash in 100-Pin LQFP Package, housed in a compact PG-LQFP-100-8 package. Originally developed by Xilinx.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 100-LQFP Exposed Pad
- Device Package: PG-LQFP-100-8
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
