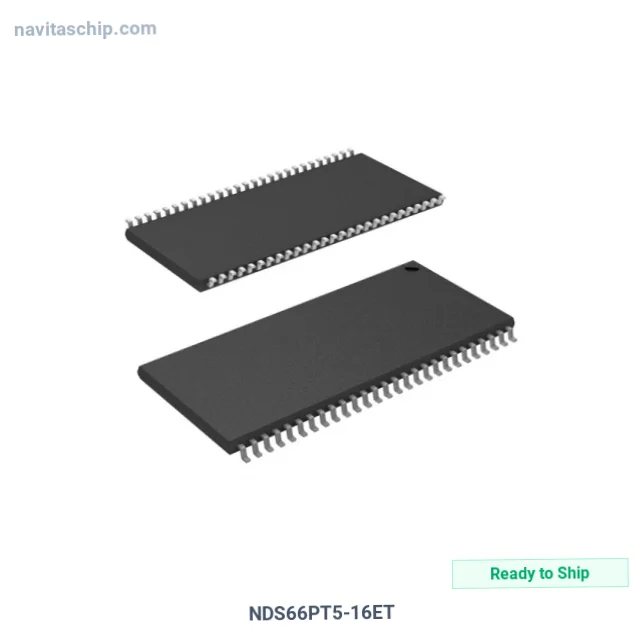

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | NDS66PT5-16ET |
| Manufacturer | Insignis Technology Corporation |
| NavitasChip Part Number | NAVI-18716986 |
| Description | IC DRAM 64MBIT LVTTL 54TSOPII |
| Spec | 54-TSOP (0.400", 10.16mm Width) |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Insignis Technology Corporation |
| Package | Tray |
| Product Status | Active |
| Memory Type | Volatile |
| Memory Format | DRAM |
| Technology | SDRAM |
| Memory Size | 64Mbit |
| Memory Organization | 4M x 16 |
| Memory Interface | LVTTL |
| Clock Frequency | 166 MHz |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 54-TSOP II |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Insignis Technology Corporation NDS66PT5-16ET Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NDS66PT5-16ET is a Memory IC manufactured by Insignis Technology Corporation (Insignis). Integrated Circuit DRAM 64mbit Lvttl 54tsopii, housed in a compact 54-TSOP II package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 54-TSOP (0.400", 10.16mm Width)
- Device Package: 54-TSOP II
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
