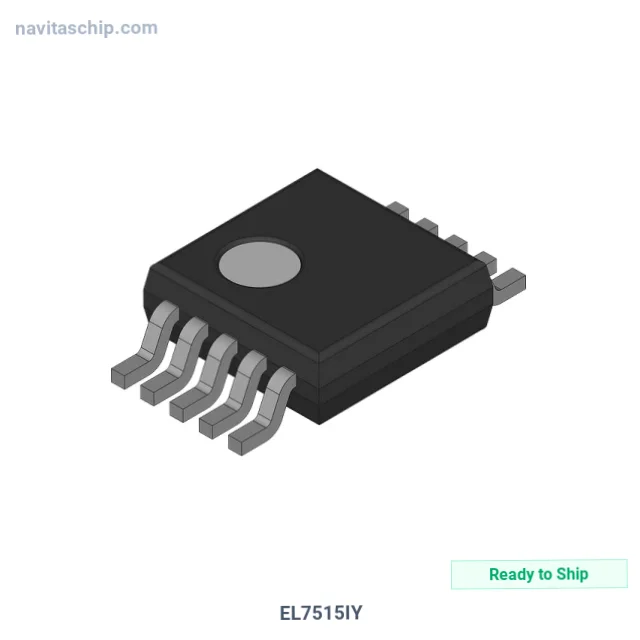

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Intersil |
| Package | Tube |
| Product Status | Obsolete |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output (Min/Fixed) | 4.5V |
| Voltage - Output (Max) | 17V |
| Current - Output | 1A (Switch) |
| Frequency - Switching | 670kHz ~ 1.2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-MSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Intersil EL7515IY Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The EL7515IY is a DC-DC Switching Voltage Regulator manufactured by Intersil. Integrated Circuit Regulator Boost Adjustable 1a in 10-Pin MSOP Package, housed in a compact 10-MSOP package. Originally developed by Intersil.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Device Package: 10-MSOP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
