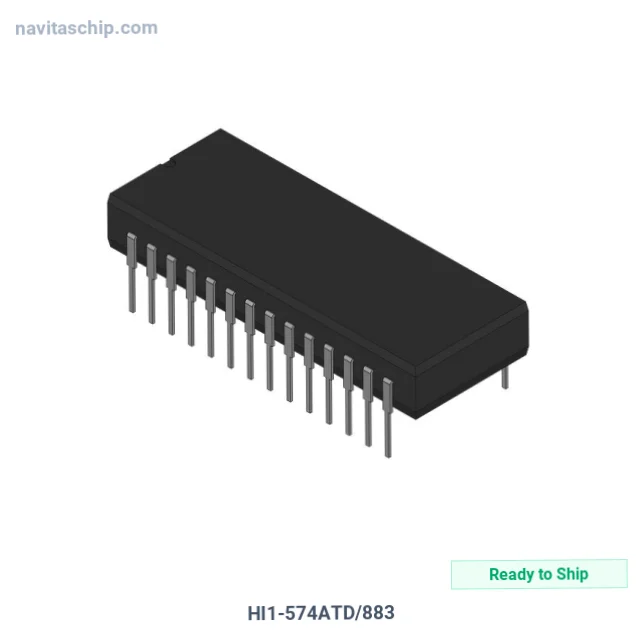

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Intersil |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 12 |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Configuration | ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.5V ~ 5.5V, ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V, ±11.4V ~ 16.5V |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 28-SBDIP |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Intersil HI1-574ATD/883 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HI1-574ATD/883 is an Analog-to-Digital Converter (ADC) manufactured by Intersil. Sar Analog-To-Digital Converter, housed in a compact 28-SBDIP package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 28-CDIP (0.600", 15.24mm)
- Device Package: 28-SBDIP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
