Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Intersil |
| Package | Bulk |
| Product Status | Active |
| Type | Video ADC |
| Number of Channels | 3 |
| Resolution (Bits) | 8 b |
| Sampling Rate (Per Second) | 50M |
| Data Interface | CMOS, Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 4.75V ~ 5.25V, 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-MQFP (14x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Intersil HI2303JCQ Datasheet |

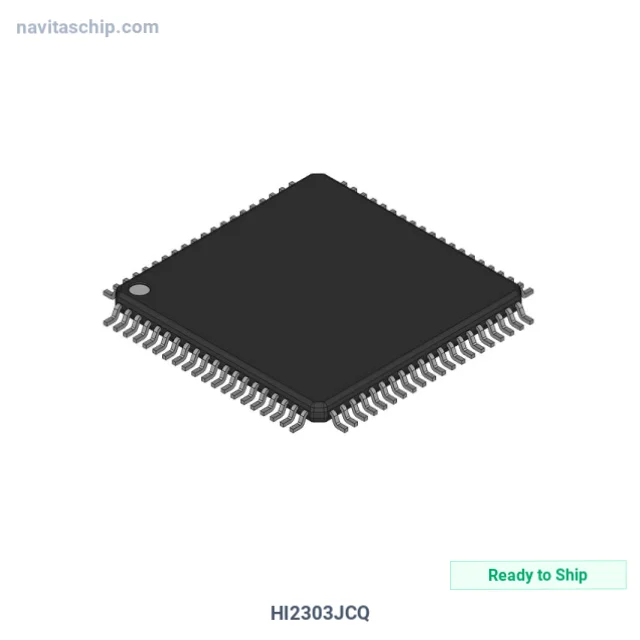

| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HI2303JCQ is an Audio Codec and Special-Purpose Data Converter IC manufactured by Intersil. 3-Ch, housed in a compact 80-MQFP (14x20) package, with 4.75V ~ 5.25V, 3V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V, 3V ~ 5.5V
- Channels: 3
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 80-BFQFP
- Device Package: 80-MQFP (14x20)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
