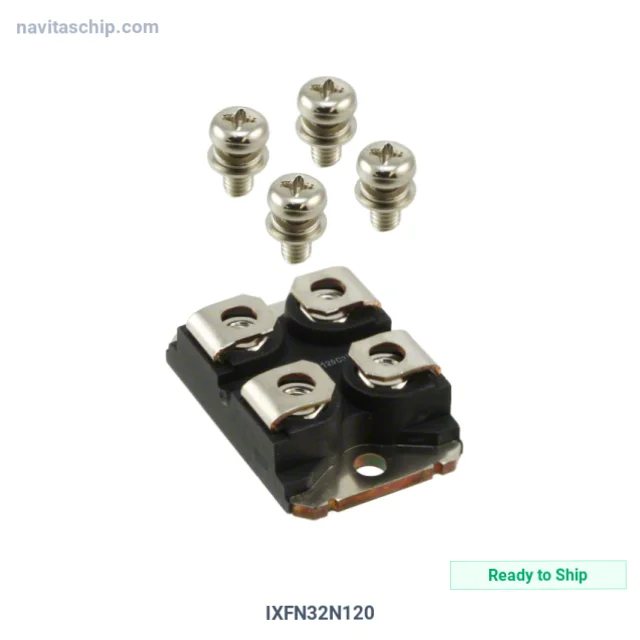

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IXFN32N120 |
| Manufacturer | IXYS |
| NavitasChip Part Number | NAVI-1651986 |
| Description | MOSFET N-CH 1200V 32A SOT-227B |
| Spec | SOT-227-4, miniBLOC |
| Package | Box |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | IXYS |
| Package | Box |
| Product Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 32A |
| Rds On (Max) @ Id, Vgs | 350mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 5V @ 8mA |
| Gate Charge (Qg) (Max) @ Vgs | 400 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 15900 pF @ 25 V |
| Mounting Type | Chassis Mount |
| Supplier Device Package | SOT-227B |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IXFN32N120 is a Transistor manufactured by IXYS. MOSFET N-Channel 1200V breakdown 32A current SOT-227b.
Key Technical Specifications
- Mounting: Chassis Mount
- Package: SOT-227-4, miniBLOC
- Device Package: SOT-227B
- RoHS Compliant
Packaging: factory Box or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
