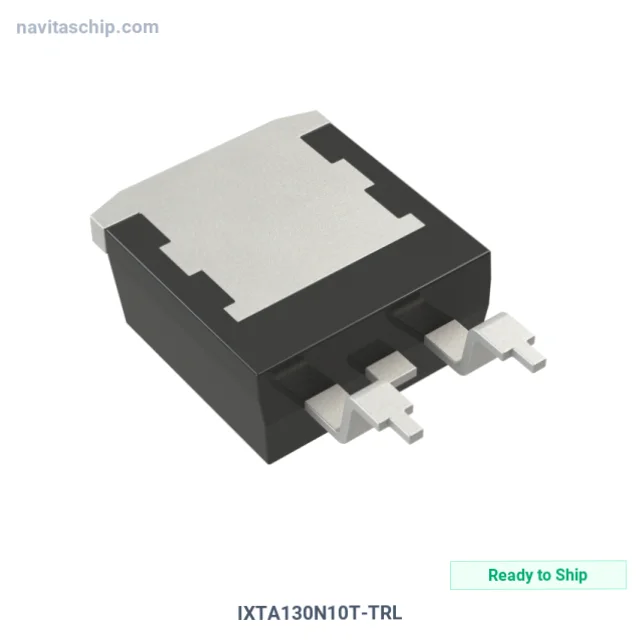

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | IXYS |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 130A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 9.1mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 104 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 5080 pF @ 25 V |
| Power Dissipation (Max) | 360W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263AA |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | IXYS IXTA130N10T-TRL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IXTA130N10T-TRL is a Transistor manufactured by IXYS. MOSFET N-Channel 100V breakdown 130A current TO-263, housed in a compact TO-263AA package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Surface Mount
- Package: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
- Device Package: TO-263AA
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
