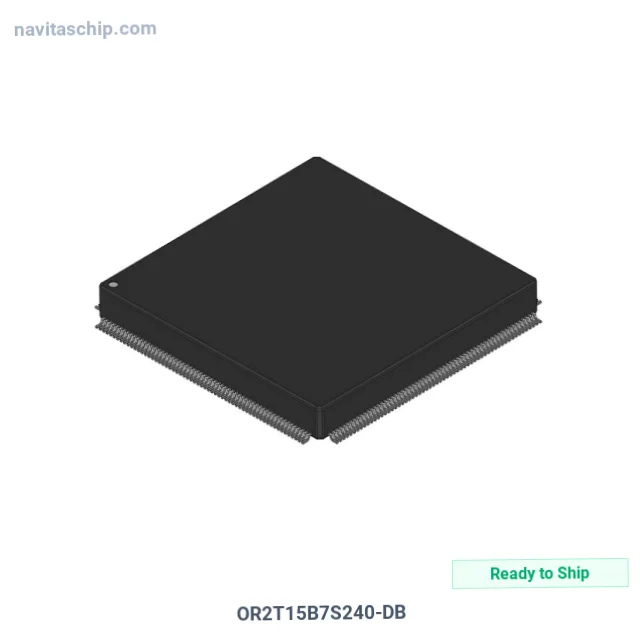

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OR2T15B7S240-DB |
| Manufacturer | Lattice Semiconductor Corporation |
| NavitasChip Part Number | NAVI-12123248 |
| Description | FPGA, 400 CLBS, 19200 GATES |
| Spec | 240-BFQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | FPGAs (Field Programmable Gate Array) |
| Manufacturer | Lattice Semiconductor Corporation |
| Package | Bulk |
| Product Status | Active |
| Number of Logic Elements/Cells | 1600 |
| Total RAM Bits | 25600 |
| Number of I/O | 184 |
| Number of Gates | 44200 |
| Voltage - Supply | 3V ~ 3.6V |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Supplier Device Package | 240-SQFP (32x32) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Lattice Semiconductor Corporation OR2T15B7S240-DB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OR2T15B7S240-DB is a Field Programmable Gate Array (FPGA) manufactured by Lattice Semiconductor Corporation (Lattice). Field Programmable Gate Array, housed in a compact 240-SQFP (32x32) package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 240-BFQFP
- Device Package: 240-SQFP (32x32)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
