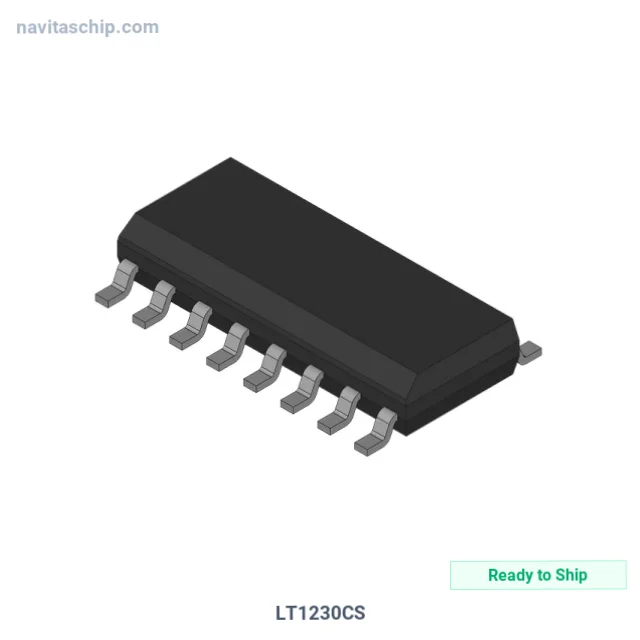

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LT1230CS |
| Manufacturer | Linear Technology |
| NavitasChip Part Number | NAVI-15640855 |
| Description | LT1230 - QUAD 100MHZ CURRENT FEE |
| Spec | 14-SOIC (0.154", 3.90mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Linear Technology |
| Package | Bulk |
| Product Status | Active |
| Amplifier Type | Current Feedback |
| Number of Circuits | 4 |
| Slew Rate | 700V/µs |
| -3db Bandwidth | 100 MHz |
| Current - Input Bias | 10 µA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 6mA (x4 Channels) |
| Current - Output / Channel | 125 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Linear Technology LT1230CS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LT1230CS is an Operational Amplifier (Op Amp) manufactured by Linear Technology (LTC). Lt1230 - Quad operating at 100MHz Current Fee, housed in a compact 14-SO package. Originally developed by Linear Technology.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 14-SOIC (0.154", 3.90mm Width)
- Device Package: 14-SO
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
