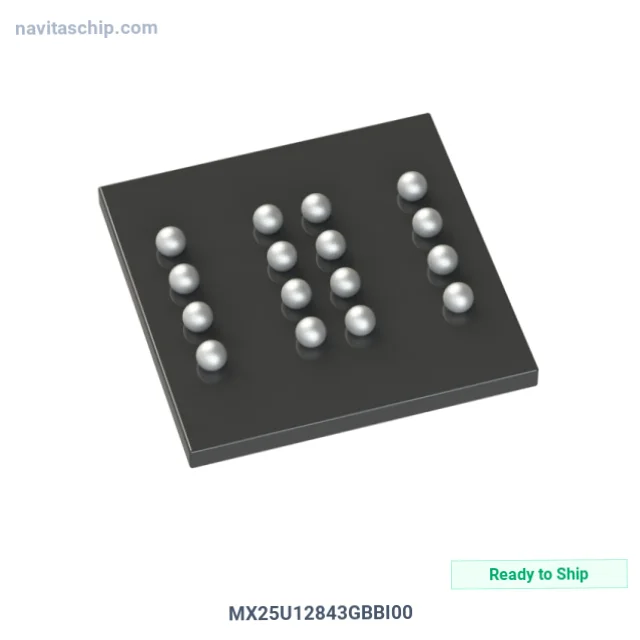

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Macronix |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 128Mbit |
| Memory Organization | 16M x 8 |
| Memory Interface | SPI - Quad I/O, QPI |
| Clock Frequency | 133 MHz |
| Write Cycle Time - Word, Page | 30µs, 3ms |
| Voltage - Supply | 1.65V ~ 2V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-WLCSP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Macronix MX25U12843GBBI00 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MX25U12843GBBI00 is a Memory IC manufactured by Macronix (MXIC). Integrated Circuit Flash Memory 128mbit SPI in 16-Pin WLCSP Package, housed in a compact 16-WLCSP package, with 1.65V ~ 2V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.65V ~ 2V
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 16-UFBGA, WLCSP
- Device Package: 16-WLCSP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
