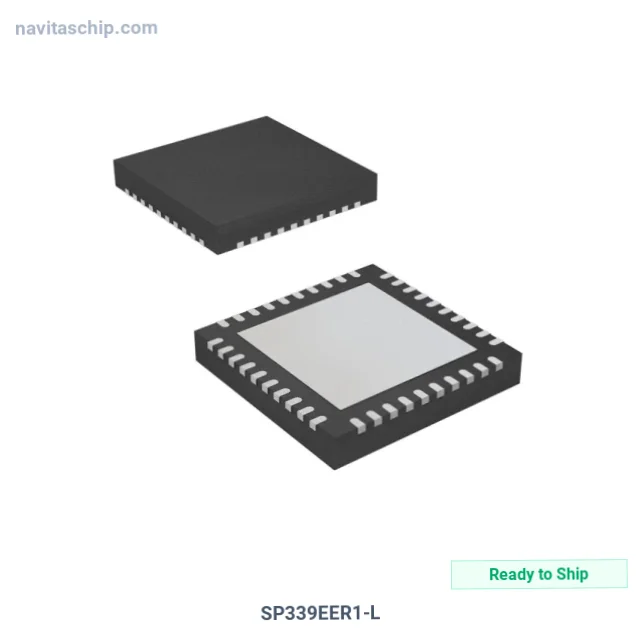

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SP339EER1-L |
| Manufacturer | MaxLinear, Inc. |
| NavitasChip Part Number | NAVI-2770685 |
| Description | IC TRANSCEIVER FULL 3/5 40QFN |
| Spec | 40-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | MaxLinear, Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS232, RS422, RS485 |
| Number of Drivers/Receivers | 3/5 |
| Duplex | Full |
| Receiver Hysteresis | 25 mV |
| Data Rate | 1Mbps |
| Voltage - Supply | 3.3V, 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 40-QFN (6x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | MaxLinear, Inc. SP339EER1-L Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SP339EER1-L is an Interface Driver Receiver Transceiver IC manufactured by MaxLinear, Inc.. Integrated Circuit Transceiver Full 3/5 in 40-Pin QFN Package, housed in a compact 40-QFN (6x6) package, with 3.3V, 5V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.3V, 5V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 40-VFQFN Exposed Pad
- Device Package: 40-QFN (6x6)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
