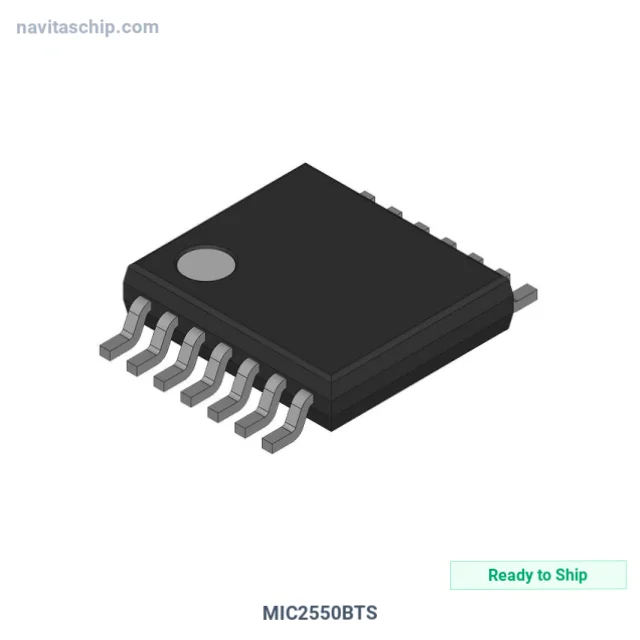

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MIC2550BTS |
| Manufacturer | Micrel Inc. |
| NavitasChip Part Number | NAVI-12134607 |
| Description | IC TRANSCEIVER HALF 1/1 14TSSOP |
| Spec | 14-TSSOP (0.173", 4.40mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Micrel Inc. |
| Package | Bulk |
| Product Status | Active |
| Type | Transceiver |
| Protocol | USB 2.0 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 200 mV |
| Data Rate | 12Mbps |
| Voltage - Supply | 4V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Micrel Inc. MIC2550BTS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MIC2550BTS is an Interface Driver Receiver Transceiver IC manufactured by Micrel Inc.. Integrated Circuit Transceiver Half 1/1 in 14-Pin TSSOP Package, housed in a compact 14-TSSOP package, with 4V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 4V ~ 5.25V
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 14-TSSOP (0.173", 4.40mm Width)
- Device Package: 14-TSSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
