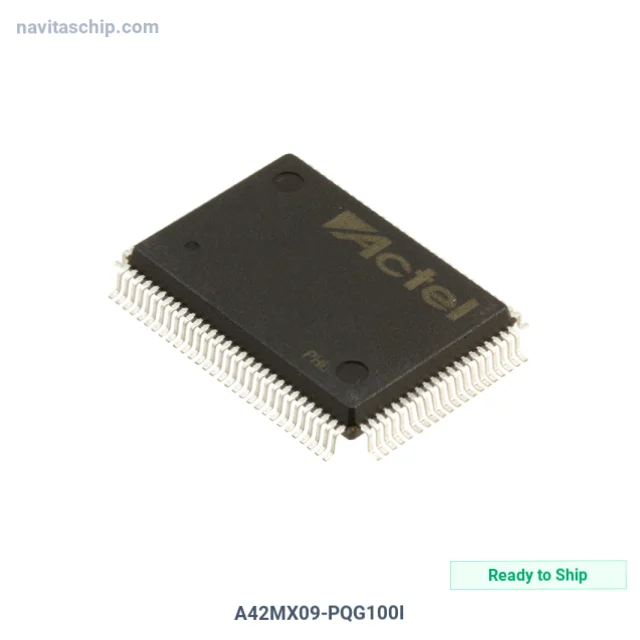

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | A42MX09-PQG100I |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-2859558 |
| Description | IC FPGA 83 I/O 100QFP |
| Spec | 100-BQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | FPGAs (Field Programmable Gate Array) |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Number of I/O | 83 |
| Number of Gates | 14000 |
| Voltage - Supply | 3V ~ 3.6V, 4.5V ~ 5.5V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 100-PQFP (20x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology A42MX09-PQG100I Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The A42MX09-PQG100I is a Field Programmable Gate Array (FPGA) manufactured by Microchip Technology (Microchip). Integrated Circuit Field Programmable Gate Array 83 I/O in 100-Pin QFP Package, housed in a compact 100-PQFP (20x14) package, with 3V ~ 3.6V, 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V, 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 100-BQFP
- Device Package: 100-PQFP (20x14)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
