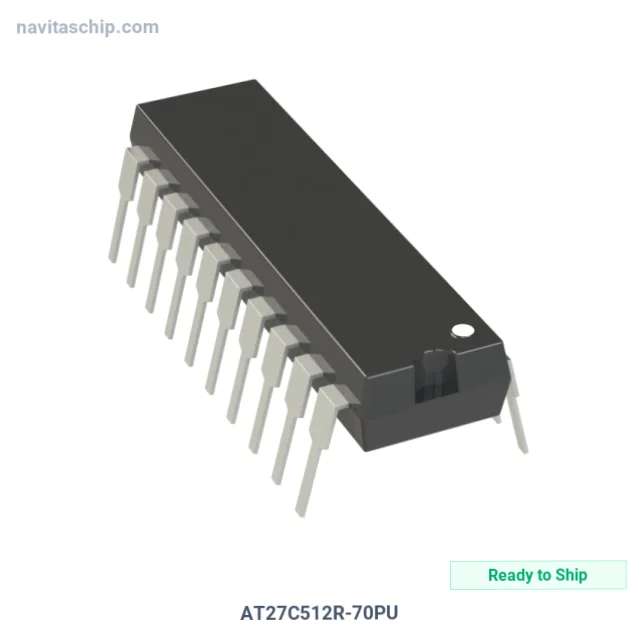

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AT27C512R-70PU |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-1008609 |
| Description | IC EPROM 512KBIT PARALLEL 28DIP |
| Spec | 28-DIP (0.600", 15.24mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Microchip Technology |
| Package | Tube |
| Product Status | Active |
| Memory Type | Non-Volatile |
| Memory Format | EPROM |
| Technology | EPROM - OTP |
| Memory Size | 512Kbit |
| Memory Organization | 64K x 8 |
| Memory Interface | Parallel |
| Access Time | 70 ns |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Through Hole |
| Supplier Device Package | 28-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology AT27C512R-70PU Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AT27C512R-70PU is a Memory IC manufactured by Microchip Technology (Microchip). Integrated Circuit EPROM 512kbit Parallel in 28-Pin DIP Package, housed in a compact 28-PDIP package, with 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C (TC)
- Mounting: Through Hole
- Package: 28-DIP (0.600", 15.24mm)
- Device Package: 28-PDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
