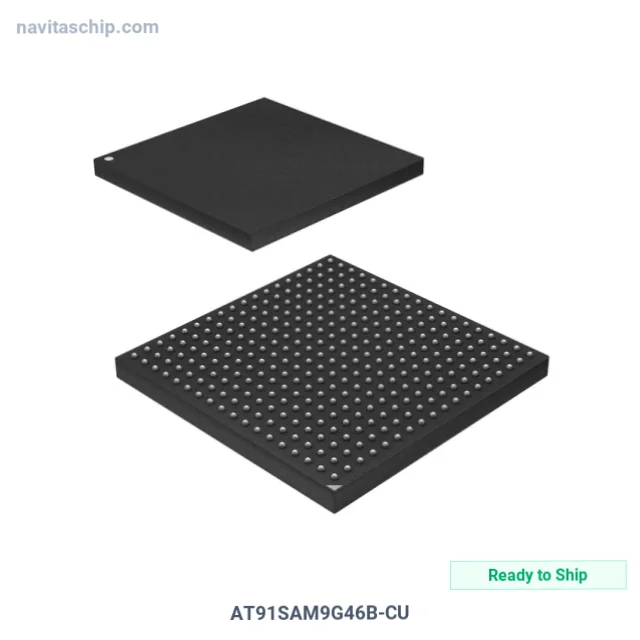

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AT91SAM9G46B-CU |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-3046420 |
| Description | IC MPU SAM9G 400MHZ 324TFBGA |
| Spec | 324-TFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Microchip Technology |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM926EJ-S |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 400MHz |
| RAM Controllers | LPDDR, LPSDR, DDR2, SDR, SRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, Touchscreen |
| Ethernet | 10/100Mbps |
| USB | USB 2.0 (3) |
| Voltage - I/O | 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 324-TFBGA (15x15) |
| Additional Interfaces | AC97, EBI/EMI, I2C, ISI, MMC/SD/SDIO, SPI, SSC, UART/USART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology AT91SAM9G46B-CU Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AT91SAM9G46B-CU is an Embedded Processor manufactured by Microchip Technology (Microchip). Integrated Circuit Microprocessor Sam9g operating at 400MHz in 324-Pin BGA Package, housed in a compact 324-TFBGA (15x15) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 324-TFBGA
- Device Package: 324-TFBGA (15x15)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
