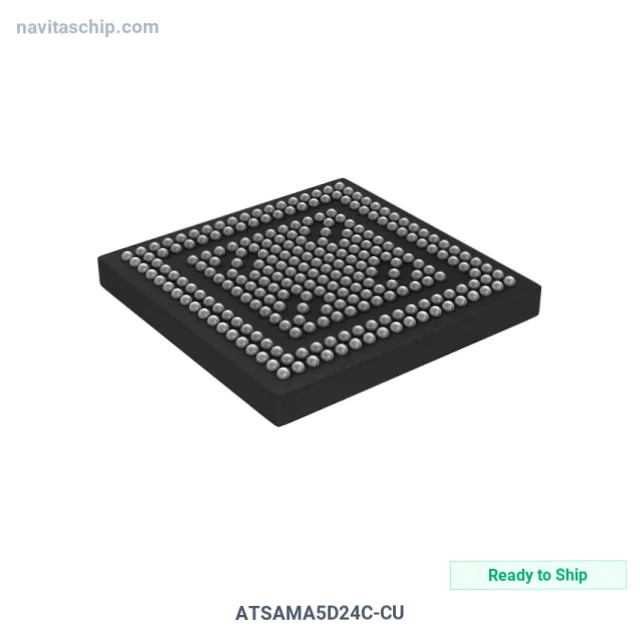

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ATSAMA5D24C-CU |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-7354706 |
| Description | IC MCU 32BIT EXT MEM 256TFBGA |
| Spec | 256-TFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-A5 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 500MHz |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR1, LPDDR2, LPDDR3, DDR2, DDR3, DDR3L, QSPI |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keyboard, LCD, Touchscreen |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 + HSIC |
| Voltage - I/O | 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC |
| Mounting Type | Surface Mount |
| Supplier Device Package | 256-TFBGA (8x8) |
| Additional Interfaces | I2C, SMC, SPI, UART, USART, QSPI |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology ATSAMA5D24C-CU Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ATSAMA5D24C-CU is an Embedded Processor manufactured by Microchip Technology (Microchip). Integrated Circuit Microcontroller 32bit Ext Memory in 256-Pin BGA Package, housed in a compact 256-TFBGA (8x8) package. Originally developed by Atmel.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 256-TFBGA
- Device Package: 256-TFBGA (8x8)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
