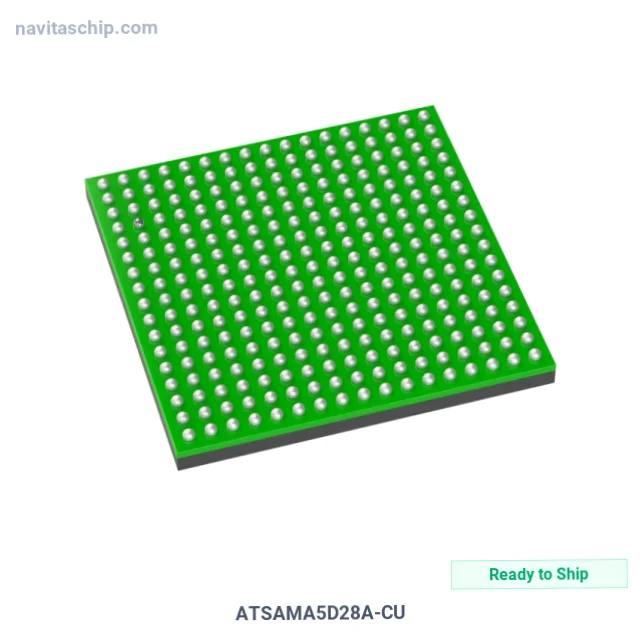

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ATSAMA5D28A-CU |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-5638843 |
| Description | IC MPU SAMA5D2 500MHZ 289LFBGA |
| Spec | 289-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Microchip Technology |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | ARM® Cortex®-A5 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 500MHz |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR1, LPDDR2, LPDDR3, DDR2, DDR3, DDR3L, QSPI |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keyboard, LCD, Touchscreen |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 + HSIC |
| Voltage - I/O | 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC |
| Mounting Type | Surface Mount |
| Supplier Device Package | 289-LFBGA (14x14) |
| Additional Interfaces | I2C, SMC, SPI, UART, USART, QSPI |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology ATSAMA5D28A-CU Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ATSAMA5D28A-CU is an Embedded Processor manufactured by Microchip Technology (Microchip). Integrated Circuit Microprocessor Sama5d2 operating at 500MHz in 289-Pin BGA Package, housed in a compact 289-LFBGA (14x14) package. Originally developed by Atmel.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 289-LFBGA
- Device Package: 289-LFBGA (14x14)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
