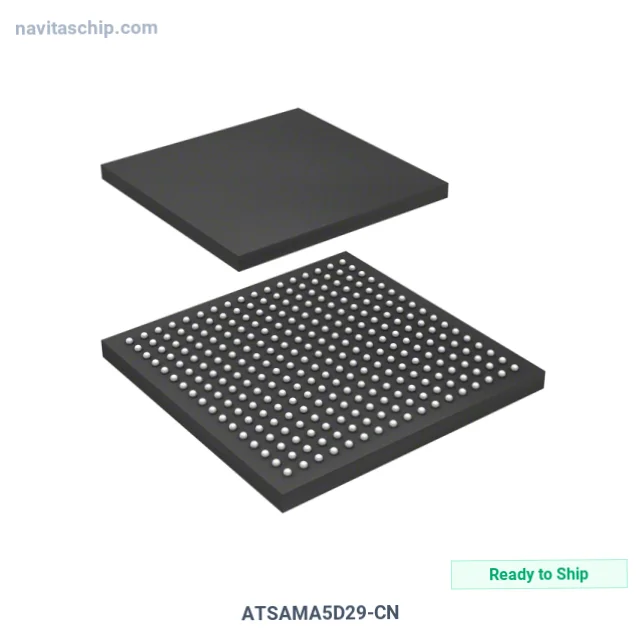

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ATSAMA5D29-CN |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-17631015 |
| Description | IC MPU SAMA5D2 500MHZ 289LFBGA |
| Spec | 289-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-A5 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 500MHz |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | DDR2, DDR3, DDR3L, LPDDR, LPDDR2, LPDDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | LCD, Touchscreen |
| Ethernet | 10/100Mbps (1) |
| USB | USB (3)+ HSIC (3) |
| Voltage - I/O | 1.2V, 1.35V, 1.5V, 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Security Features | AES, ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure Memory, Secure RTC, SHA, TDES, TRNG |
| Mounting Type | Surface Mount |
| Supplier Device Package | 289-LFBGA (14x14) |
| Additional Interfaces | EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SMC, SPI, UART, USART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology ATSAMA5D29-CN Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ATSAMA5D29-CN is an Embedded Processor manufactured by Microchip Technology (Microchip). Integrated Circuit Microprocessor Sama5d2 operating at 500MHz in 289-Pin BGA Package, housed in a compact 289-LFBGA (14x14) package. Originally developed by Atmel.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 289-LFBGA
- Device Package: 289-LFBGA (14x14)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
