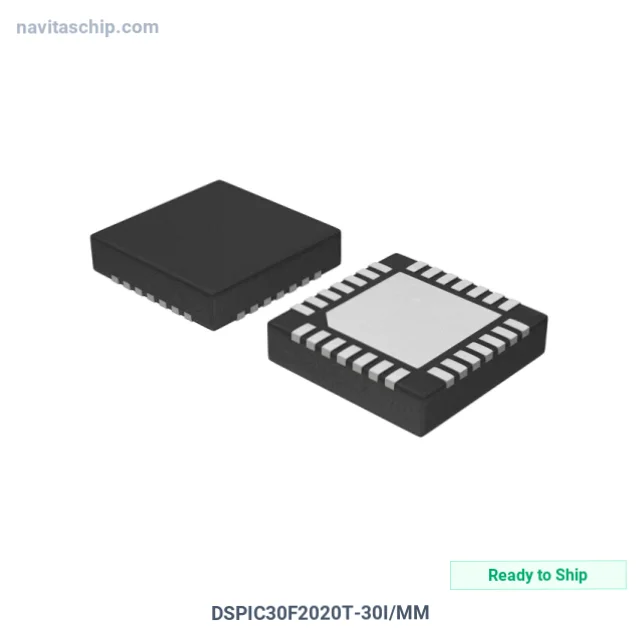

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DSPIC30F2020T-30I/MM |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-1228402 |
| Description | IC MCU 16BIT 12KB FLASH 28QFN |
| Spec | 28-VQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Speed | 30 MIPs |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 21 |
| Program Memory Size | 12KB (4K x 24) |
| Program Memory Type | FLASH |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-QFN-S (6x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology DSPIC30F2020T-30I/MM Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DSPIC30F2020T-30I/MM is a Microcontroller (MCU) manufactured by Microchip Technology (Microchip). Integrated Circuit Microcontroller 16bit 12kb Flash Memory in 28-Pin QFN Package, housed in a compact 28-QFN-S (6x6) package. Originally developed by Maxim Integrated, this component continues to be fully supported. Military temperature range (-55°C to +125°C).
In today's market, excess inventory tying up working capital can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 28-VQFN Exposed Pad
- Device Package: 28-QFN-S (6x6)
- RoHS Compliant
Applications
Designed for:
- embedded systems
- IoT devices
- industrial automation
- professional equipment
Why Choose NavitasChip for DSPIC30F2020T-30I/MM?
NavitasChip offers specialized sourcing for end-of-life and obsolete components for the DSPIC30F2020T-30I/MM and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for DSPIC30F2020T-30I/MM with regional warehouse support.
DSPIC30F2020T-30I/MM - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
